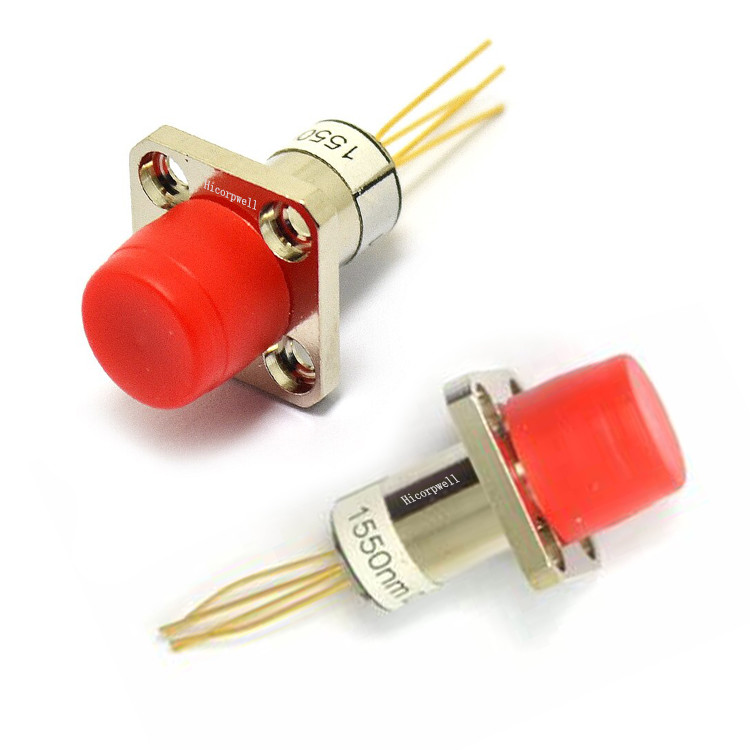

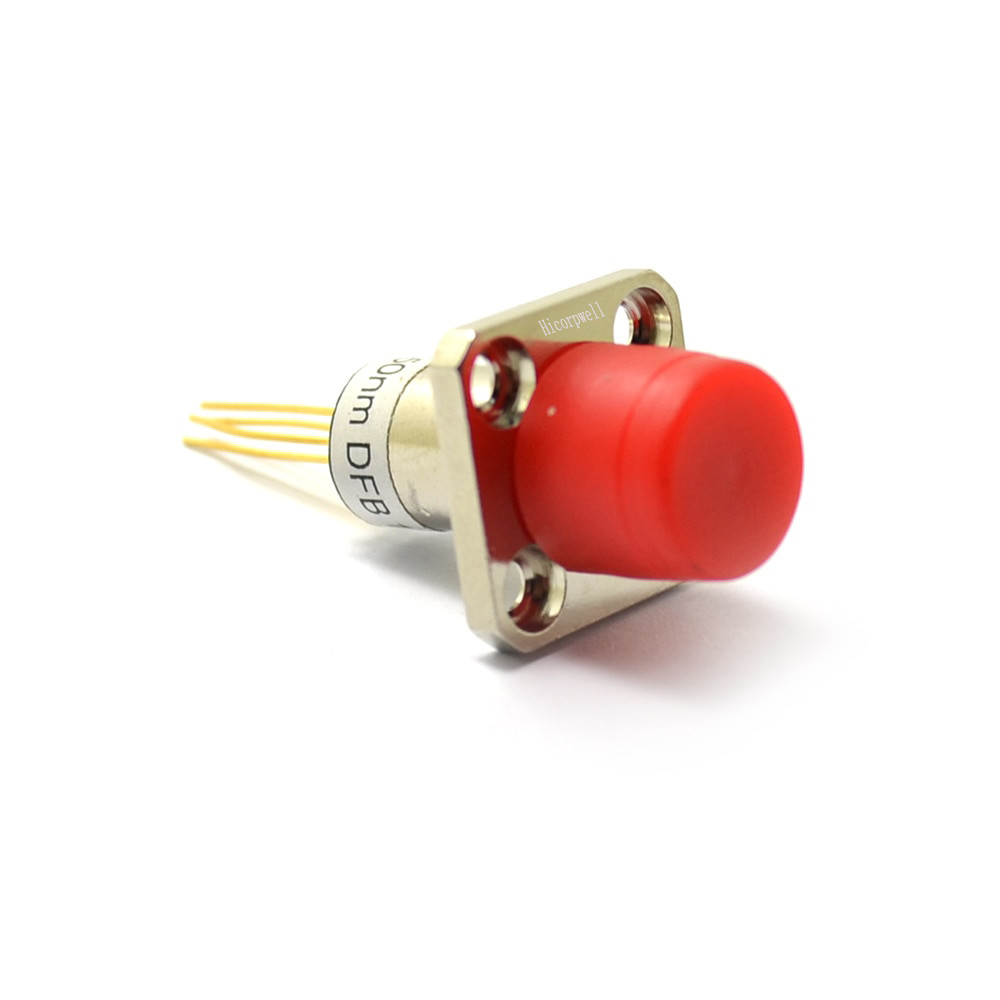

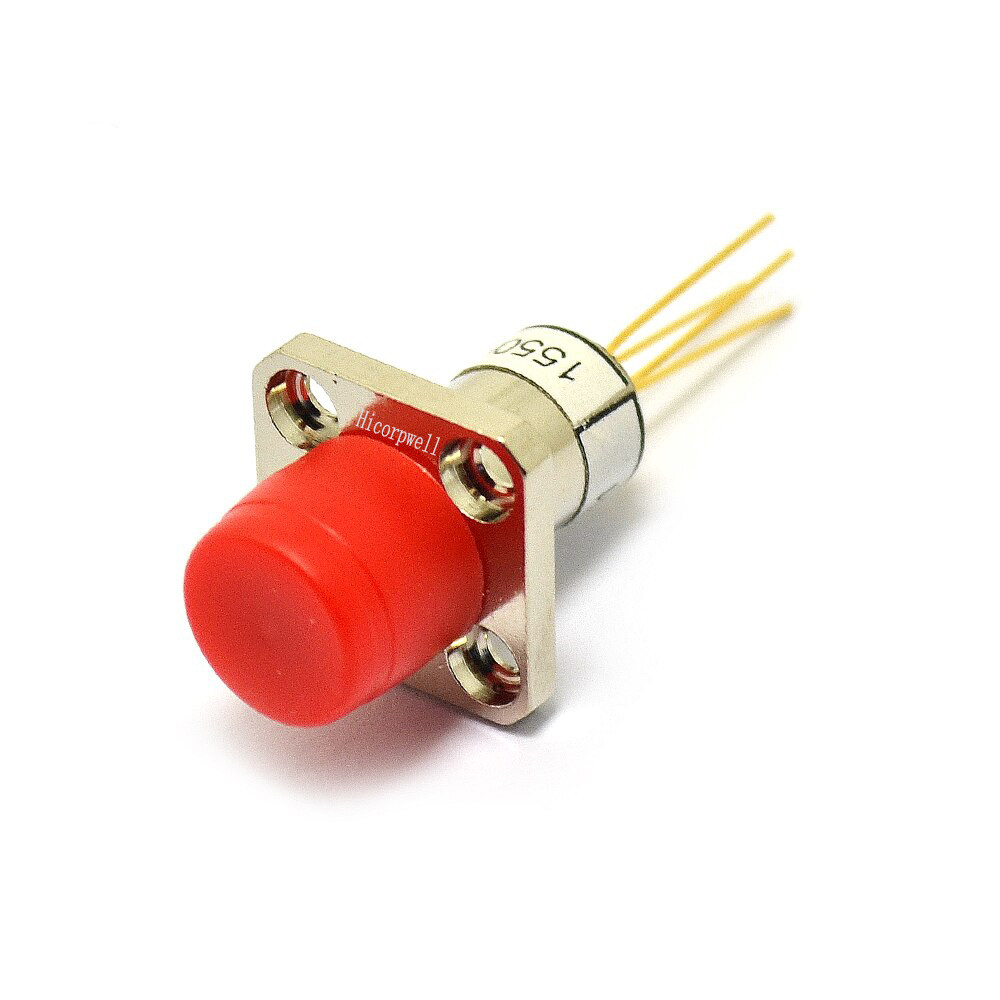

High Quality Industry Lab Lazer 1550nm DFB Laser Diode Fiber Output Power 4mW Case Package
InGaAs PIN photodiode modules designed for fiber optic communication systems.
These modules are receptacle modules, and have high responsivity, high speed and low dark current.

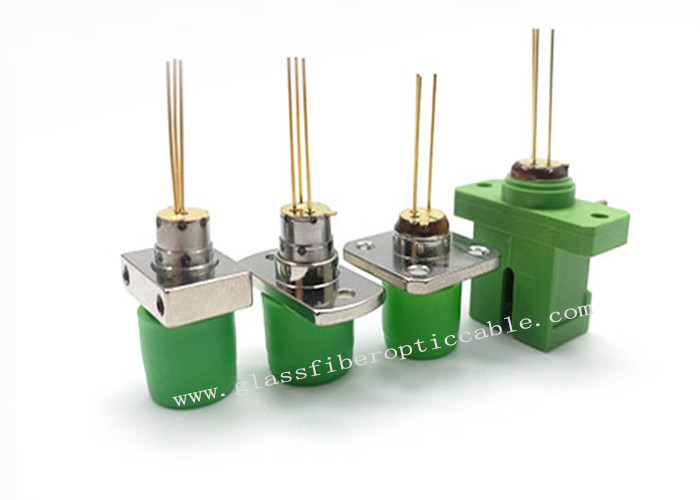

A photodiode is mounted into a coaxial package integrated with a receptacle. SC, FC or ST types are available.
1. Features:
InGaAs PIN photodiode
High responsivity
Minimum 2GHz bandwidth
Low dark current
SC, FC or ST receptacle
Low cost
2. Applications :
Analog Optical Receiver
Test Equipment
FTTH Network
CATV Forward/Return Path
EDFA Monitors
Optical transmission system
Optical digtial communications
FTTx systems
Optical gigabit ethernet
3. Absolute Maximum Ratings Tc=25°C:
| Parameter | Symbol | Ratings | Unit |
| Saturation power | Ps | 10.0 | mW |
| Forward current | If | 10.0 | mA |
| Reverser voltage | Vr | 30 | V |
| Operating temperature | Top | -40~+85 | °C |
| Storage temperature | Tstg | -40~+125 | °C |
4.Optical and Electrical Characteristics Tc=25°C:
| Parameter | Symbol | Min. | Type | Max. | Unit | Test condition |
| Operating Wavelength | λ | 1100 | 1310 | 1650 | nm | |
| Responsibility | R | 0.85 | 0.9 | A/W | Vr=5V,λ=1310nm | |
| 0.9 | 0.95 | A/W | Vr=5V,λ=1550nm | |||
| Dark Current | Id | 0.5 | 1.0 | nA | Vr=5V | |
| Capacitance | C | 0.3 | 1.0 | pF | Vr=5V | |
| Rise time/Fall time | Tr/Tf | 0.3 | ns | Vr=5V,10~90% | ||
| Bandwidth | Bw | 2.5 | GHz | Vr=5V |
Hicorpwell is a professional plug in InGaAs coaxial photodetector diode modules (analog optical active receptacle ROSA plug in)
manufacturer in China.
We also provide butterfly laser diodes, InGaAs coaxial pigtail laser detector diode, coaxial pigtail diode laser device
and more.
5. PD Pin assignment :
