SM 1310/1550nm HCW290 Smart Handy OTDR Otdr Machine

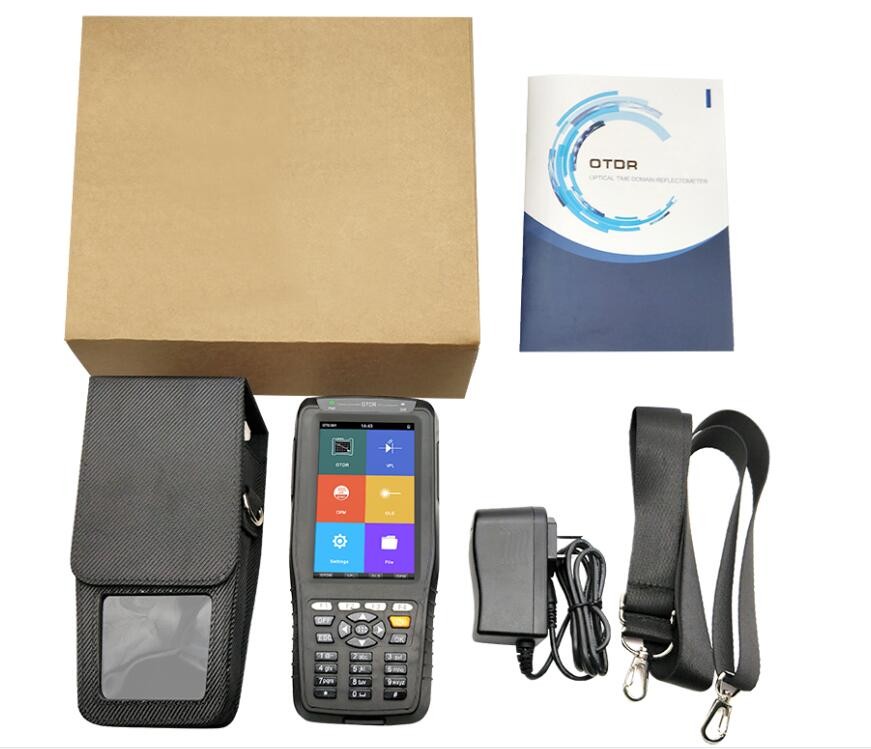

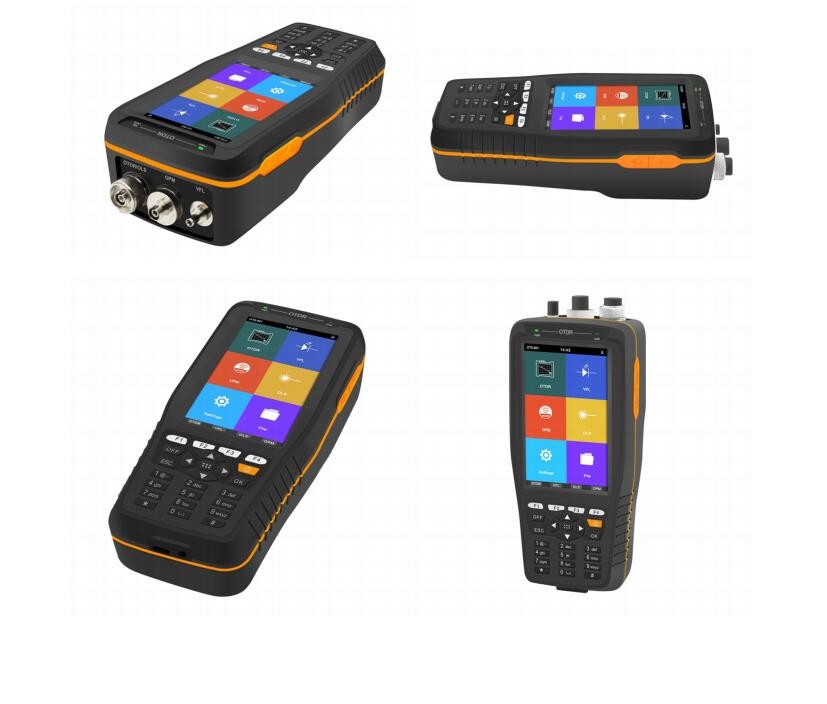

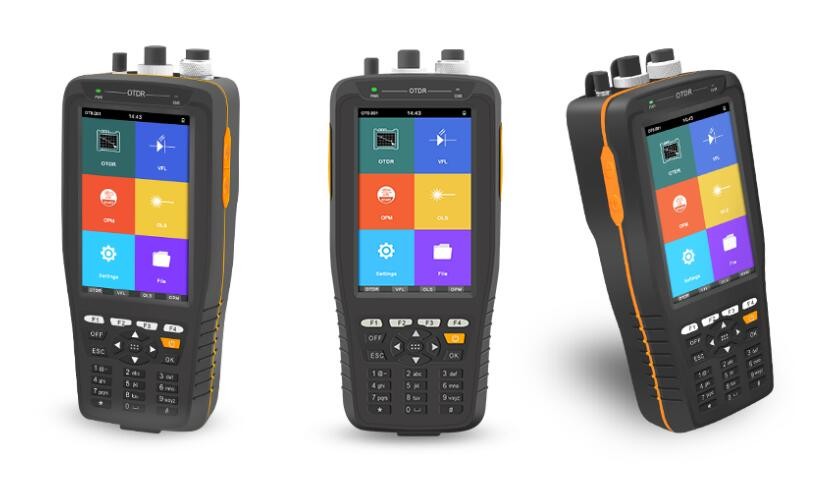

HCW290 Smart Handy OTDR
■Lightweight, portable, cost-effective
■ One Key Operation, Legible Test Data
■Integrated with Visual Fault Locator system, it is easily to detect fault location of dead Zone
■Use the rubber Key, good dustproof, waterproof, quakeproof ability, suitable for field maintenance work
■Use big capacity battery, long working time, suitable for long time field working
■Suitable for engineer construction and maintenance fault location of FTTx and access network
Features:
Specifications
1. OTDR
| Type | HCW290 |
| Wavelength | 1310/1550nm |
| Dynamic Range | 22/20dB |
| Measure distances | 0-60km |
| Fiber type | SM |
| Type of Fiber | 9/125um Single-mode optical fiber |
| Type of Connectors | FC/PC/; SC/PC |
| Peak Value of laser | >=30mW |
| UOM of Measurement | Meter,Feet,Mile |
| Dead Zone of Reflection Event | 2m |
| Dead Zone of attenuation Event | 12m |
|
Accuracy Distance (Reflection Event) |
About +_(1m+2 *10(-4)* distance) |
| Number of test records saved | 100 |
| Power Supply | 8.4V Li-ion Battery 4400mAH |
| Battery working time | >=5,000 times of measurements |
| Temperature | Operate :-5~50 ,Store:-10~60 |
| Humidity | 0~85%(Non-condensing) |
| Weight(g) | 300 |
2. Visual Fault Locator
| Wavelength : | 650nm |
| VFL Output Power | >=10mW |
| Mode | CW,1Hz,2Hz |
| Fiber type | SM/MM |
3.Optical Power Meter
| Measurement range dBm | -70～+10 dBm | -50～+26 dBm |
| Wavelength range(nm) | 800～1650 | |
| Calibrated wavelength | 850nm,1300nm,1310nm,1490nm,1550nm,1625nm(other wavelength will be on request) | |
| Detector | InGaAs | |
| Accuracy | <±3% (-10dBm,22℃) | |
| Resolution | Linearity:0.1%,Non-linearity:0.01dBm | |
| connector | Changeable FC/PC SC/PC,( ST as Optional) | |
4.Optical Light Source
| Emitter | FP-LD |
| wavelength (nm) | 1310/1550nm |
| Connector | FC/PC(SC/ST as optional) |
| Output power | ≥-5dBm |
| Output stability(dBm) | ±0.04@20℃@15min |
| Modulation | CW/270Hz/1KHz/2KHz |
| Fiber type | SM |
