Intelligent Optical Fiber Splicing Machine With 5200mAH Battery

1 pcs one pcs in lplastic box ,then in the carton
MOQ
1200-2000 USD per set
Price
Intelligent Optical Fiber Splicing Machine With 5200mAH Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: SMF/MMF/DSF/NZDSF
Application: FTTH FTTB FTTX Network
Splicing Time: 9 Seconds
Typical Heating Time: 30 Sec
Electrode Lifetime: 4000 Times Replaceable
Warranty: 3 Years
Cleaved Length: Diameter: 0.125~1 Mm / Cleave Length: 8~16 Mm
Protection Sleeve Length: 20~60 Mm
Highlight:

FST-16S Fiber Splicing Machine

,

5200mAH Battery Optical Splicing Machine

,

FST-16S Fiber Optic Fusion Splicer
Basic Infomation
Place of Origin: China
Brand Name: Hicorpwell
Certification: ISO9001
Model Number: FST-16S Optical Fiber Fusion Splicer
Payment & Shipping Terms
Packaging Details: 129(W) x 195(D) x 99(H) mm (without protrusion) 1.6kg (without Battery), 2.08kg (with Battery BU-15)
Delivery Time: 5-8 days
Product Description
Optical Fiber Splicing Machine Manufacturers Online  FST-16S Optical Fiber Fusion Splicer

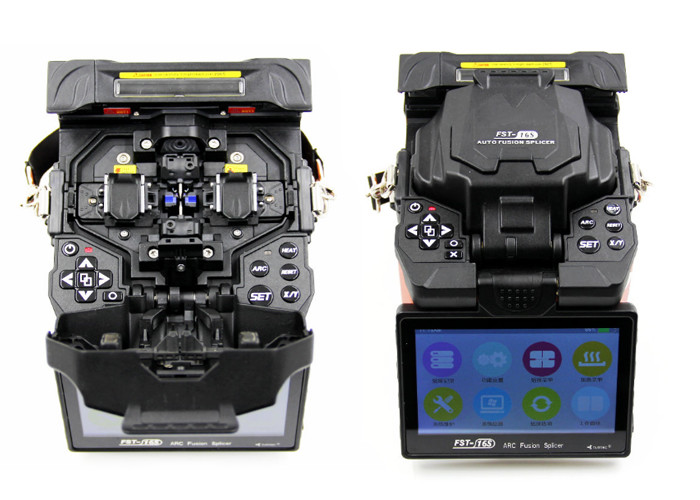

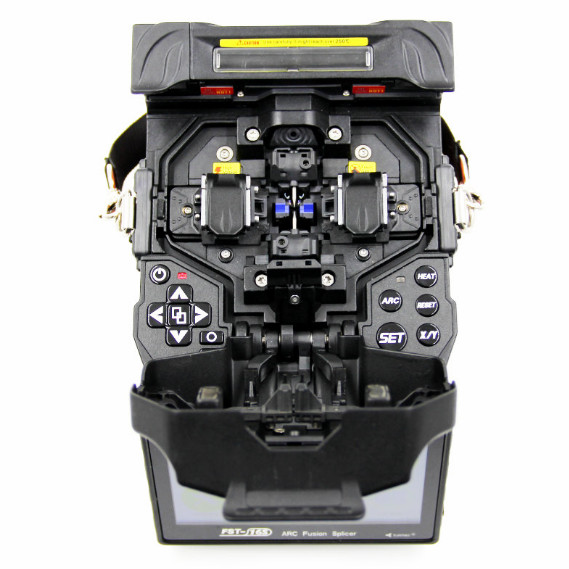

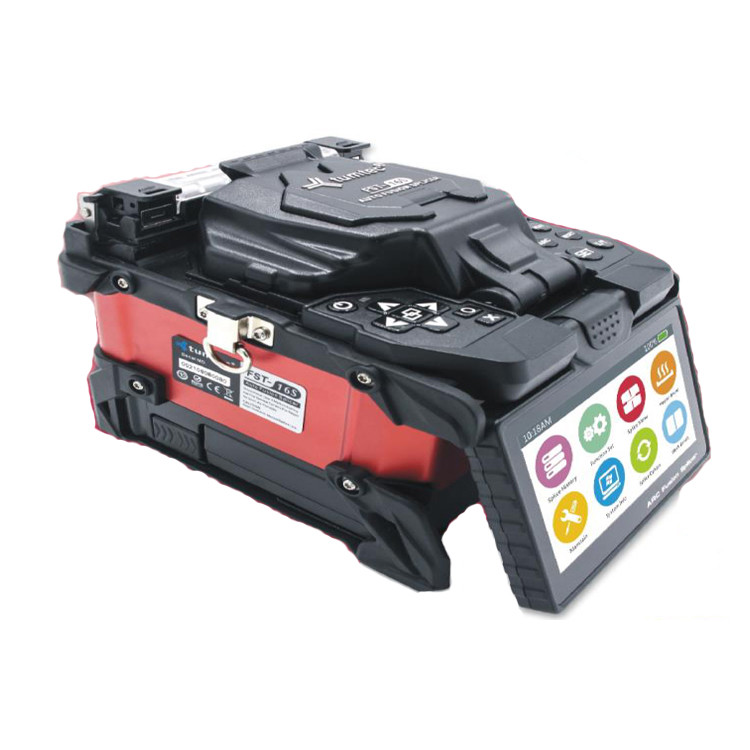

Fusion Splicer FST-16S is one of the most powerful & intelligent fusion splicing machines
and adopts cladding alignment technology. It has industrial-level Quad-core CPU( Mainly 1.4 GHz ),
featuring low power cost and high performances, equipped with 5” high-resolution color LCD touch screen for easy operations.

It also provides high capacity battery of 5200mAH for working even further in the field, which is typical 280 splicing/heating cycles.
Innovative technology brings unlimited convenience. With its excellent and stable performances,
FST-16S has become one of the most reliable and effective fusion splicer for FTTX in global market.


Specifications

Model FST-16S
Number of Fiber Single
Applicable Fibers SM(ITU-T G.652&G.657) / MM(ITU-T G.651) /
DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable 0.25~3.0 mm / Indoor Cable (0.9mm/2.0mm/2.4mm)
Cleaved Length Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Splicing Mode Multiple splicing modes
Typical Splice Loss 0.01-0.05db
Return Loss >> 60 dB
Lighting 1 Powerful White LED and Illuminated Keypads
Splicing Time 6~8 seconds
Estimated Splice Loss Available
Protection Sleeve Length 20~60 mm
Heating Mode Multi Heating Modes
Heating Time Typical Heating Time: 30 sec
Records Storage The latest 5000 Records
Tension Test 1.5~2.0N
Operating Condition Operating Altitude: 0~5000m above Sea Level,
0.95% Relative Humidity,
-10~50°C, Max Wind 15m/s
Storage Condition 0~95% Relative Humidity, -40~80°C
Display 90° Bi-directional View,
5.0" 800*480 Color High Resolution Display with Touch Screen
Fiber View & Magnification X, Y, XY, X/Y : 500X Magnification
Power Supply AC Input 100-240V, DC Input 12-15V
Battery Capacity 5200mAh , Typical above 280 times (Splice+Heat)
Operating Methods Button / Touch Screen
Automatic Calibration Automatic ARC Calibration According to Air Pressure and Temperature
Electrode Life 3500 ARC, can be Extended by Using an Electrode Grinder
Terminal USB2.0 / Phone Jack

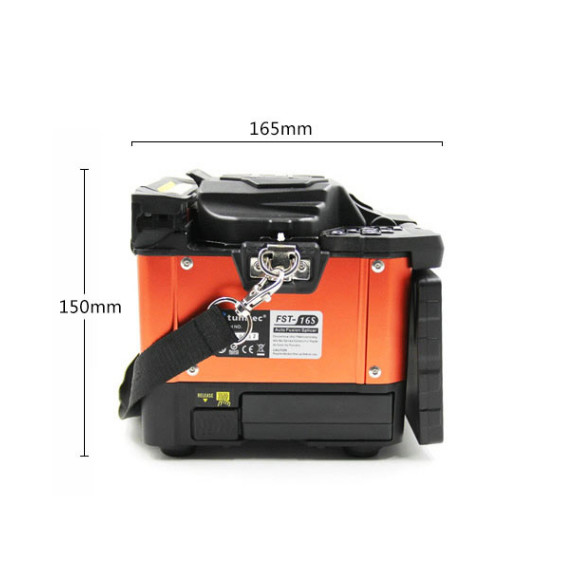

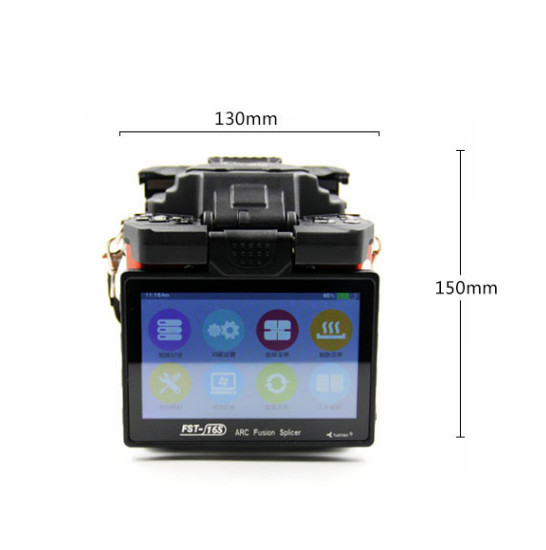

Dimension 140W x 165L x 160H mm (including rubber bumper) /
130W x 165L x 150H mm(excluding rubber bumper)
Weight 2.0KG (including rubber bumper) /
1.7KG (excluding rubber bumper)/
0.38KG (battery)







Intelligent Optical Fiber Splicing Machine With 5200mAH Battery



Intelligent Optical Fiber Splicing Machine With 5200mAH BatteryIntelligent Optical Fiber Splicing Machine With 5200mAH Battery
