Hot Plug In Type Dual Power Supply Optical Transmitter Dual Module Direct Modulation
1 pcs
MOQ
negotiation
Price
Hot Plug In Type Dual Power Supply Optical Transmitter Dual Module Direct Modulation
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Hicorpwell
Certification: ISO9001
Model Number: HCW9941
High Light:

Plug-In Type Optical Transmitter

,

Dual Power Supply Fiber Optic Transmitter

,

Direct Modulation Optical Transmitter

Payment & Shipping Terms
Packaging Details: 1 pc /1 Strong carton OEM package offered 1550nm TV Broadcast transmitter
Delivery Time: 3-7 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 pcs per week
Specifications
Name: Direct Optical Transmitter
Operating Wavelength: 1550±10nm
Output Power: 5-10dbm
Optical Fiber Connector: SC/APC,FC/APC
Size(W)x(D)x(H): 19 "x14.5 "x1.75 "
Optical Power: 5 ~ 6 DBm Output
Weight: 6kg
Dimensions: 565 X 560 X 135mm
Power Supply: 90 ~ 260VAC,50/60Hz
Long Distance Transmission: 10 ~ 35 Kilometers
Product Description
Hot Plug-in type Dual Power supply Plug-in type Optical Transmitter Dual Module Direct Modulation Optical Transmitter

Product Description
HCW series of advanced 1550nm directly modulated optical transmitter, is mainly used in overlay insert systems to implement high-value and multi-functional local designed value-added services such as self-run programs. Low chirp, the output is the ITU standard wavelength, the RF driver adopts a self-developed RF predistortion circuit and a built-in perfect microcomputer automatic monitoring system to ensure the excellent performance index of the device.

HCW- series of advanced 1550nm directly modulated optical transmitter, suitable for 10 ~ 20 kilometers long distance transmission.

Product feature:

1. Top quality: The low chirp, high linearity DFB laser, and RF pre-correction circuit are used to keep the C / CTB, C / CSO, and C / N indexes in the best state.
2. Transmission range: 10 ~ 20 kilometers for short distance transmission.
3. Reliability: 19" 1U standard rack, built-in high-performance 1 + 1 hot backup power supply, which can work at 86 ~ 265Vac city network. MS automatic switching, and chassis temperature automatic control.
4. Excellent performance-price ratio: suitable for FTTH triple play CATV from headend to end user.
5. Intuitive: The laser is the most expensive component of the device. The built-in microprocessor software monitors the working status of the laser, and the working parameters are displayed on the panel LCD.
6. Network management type: SNMP network management, can realize the network management WEB monitoring function.
7. Can be customized 2 outputs, optical power 5 ~ 6dBm output.

Specification

1.Plug-in type Dual Power

2.CNR ≥52.0dB

3.C/CTB ≥65.0dB

4.C/CSO ≥65.0dB

5.DFB laser produced by XT. ORTEL . AOI

6.the Digital Panel (VFD) displays the operating parameters

7.19 "1U standard rack

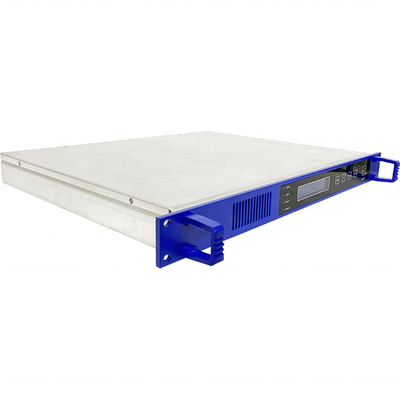

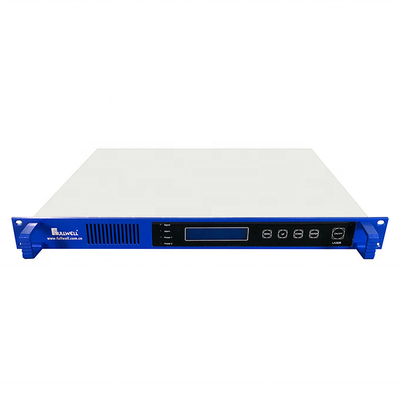

Hot Plug In Type Dual Power Supply Optical Transmitter Dual Module Direct Modulation 0Hot Plug In Type Dual Power Supply Optical Transmitter Dual Module Direct Modulation 1

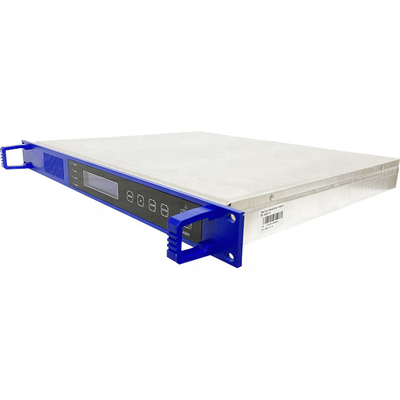

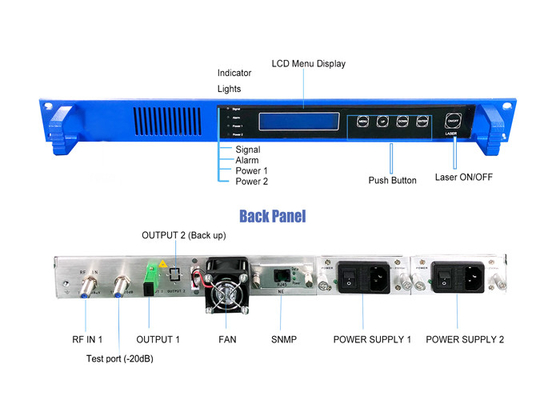

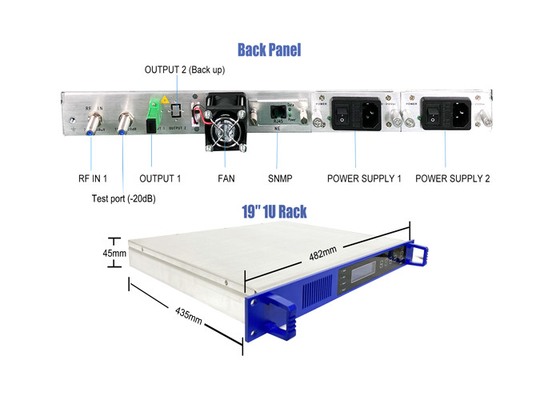

Hot Plug In Type Dual Power Supply Optical Transmitter Dual Module Direct Modulation 2     Hot Plug In Type Dual Power Supply Optical Transmitter Dual Module Direct Modulation 3
