Name: Passive Components Power Splitter Divider Quick SMA Connector Unit
Brand: Shenzhen Hicorpwell Technology Co., Ltd
SKU: Power Divider Splitter
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Catalogue: RF Passive Components Unit

Connectors: SMA Connectors

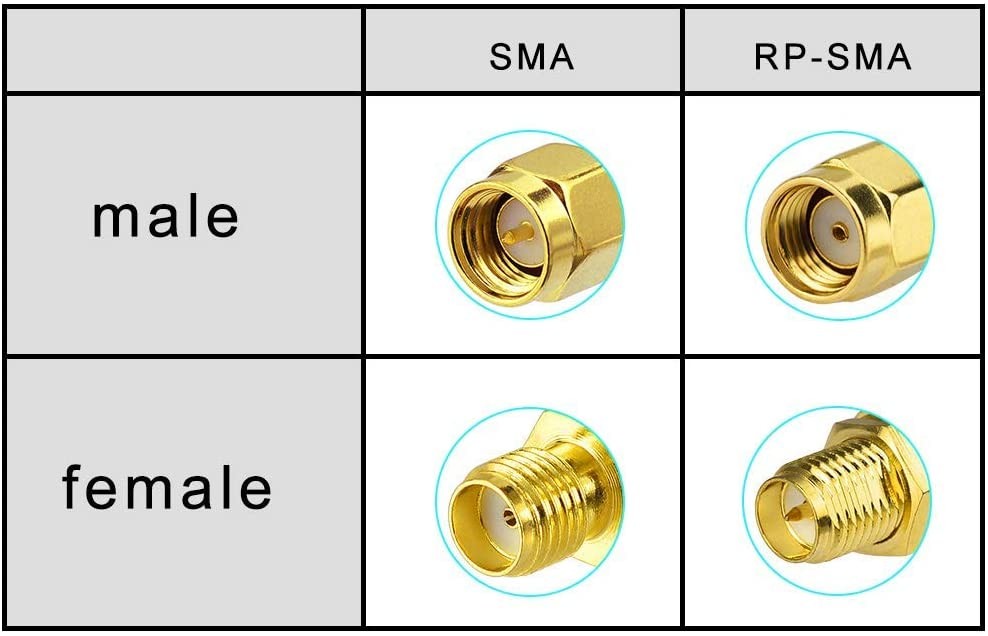

Connector Type: SMA

RF Connector: SMA-Female

Bend Radius: 30mm

Average Power: 50W

Isolation(dB): 20

Min Isolation(dB): 18

Physical Dimension(mm,+/-0.1): 49.6×33.5×12.8

Highlight:

SMA Connectors Power Splitter

Quick SMA Connector Unit Divider

SMA Connectors RF Power Divider

Basic Infomation

Place of Origin: China

Brand Name: HICORPWELL

Certification: IEC 60794-2-10/11

Model Number: Power Divider Splitter

Payment & Shipping Terms

Packaging Details: Polybag and Carton

Payment Terms: Western Union, L/C, T/T

Supply Ability: 5000pcs Per Week

Gallery

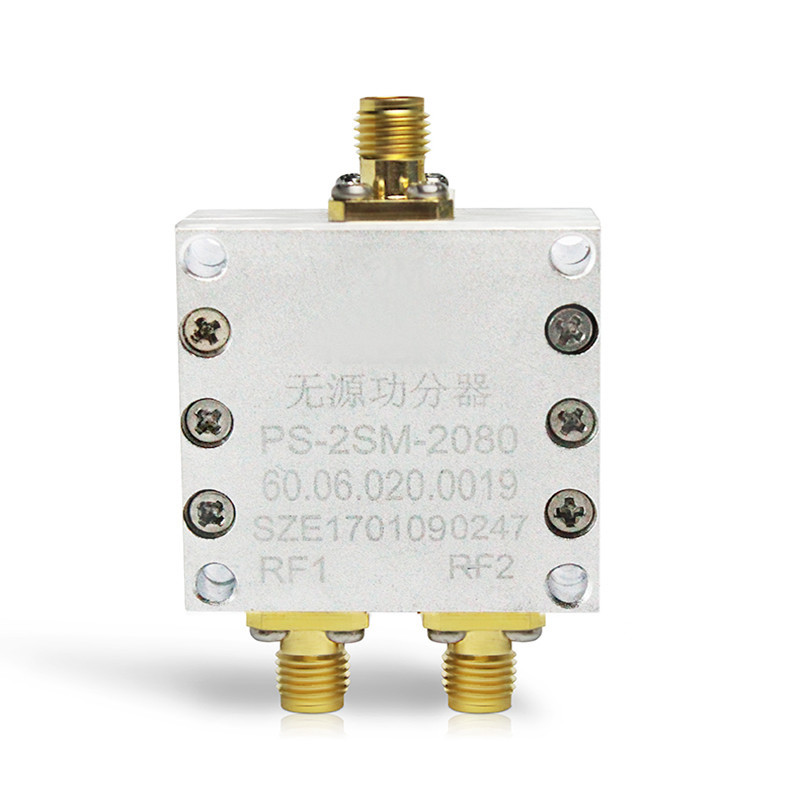

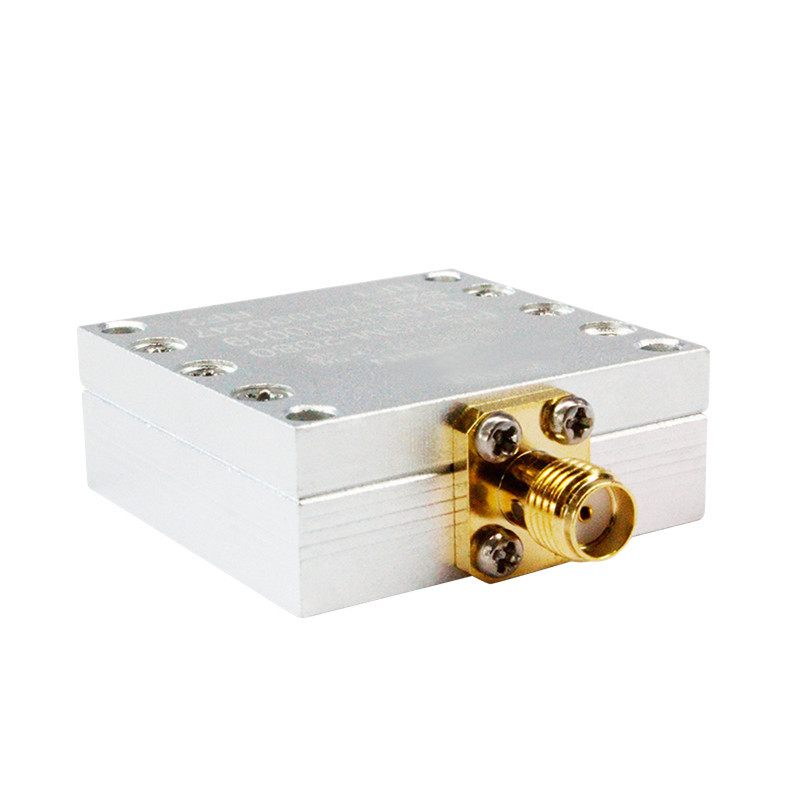

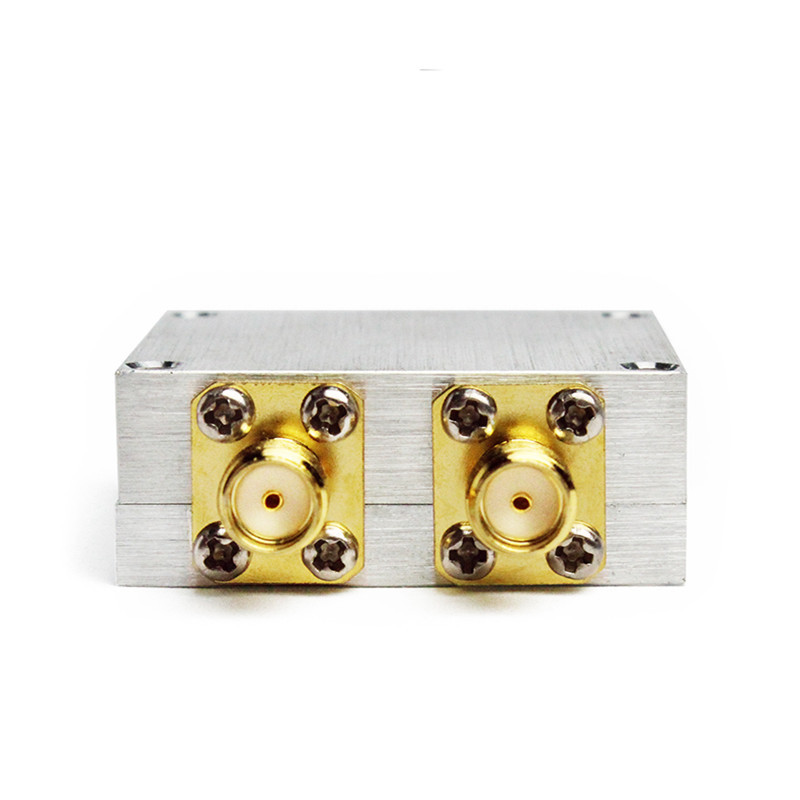

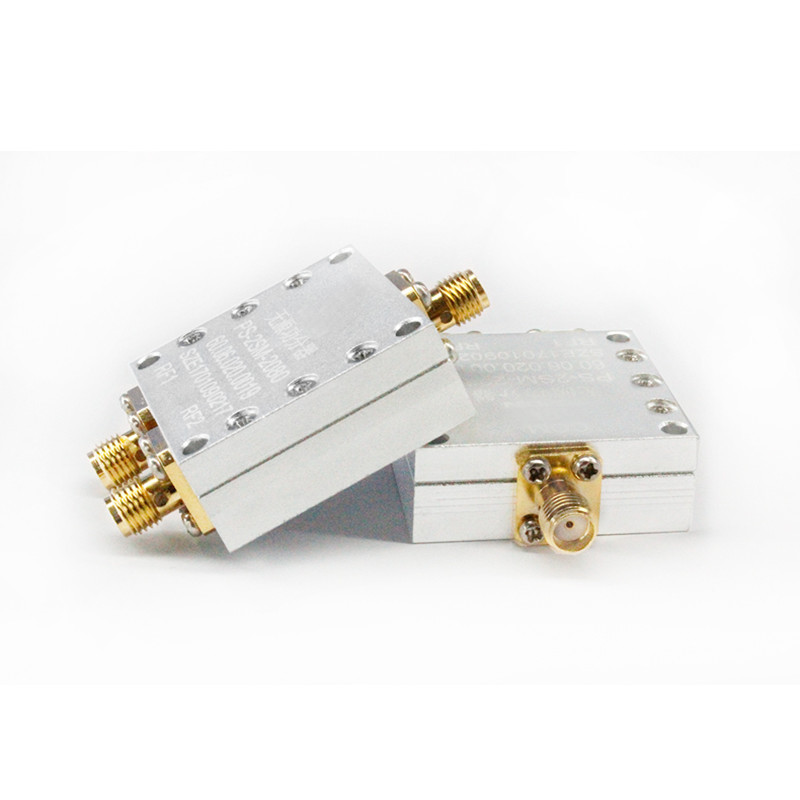

Passive Components Power Splitter Divider Quick SMA Connector Unit

Product Description

Passive Components Power Splitter Divider Quick SMA Connector Unit

Parameter


Min.	Typ.	Max.
Frequency Range(GHz)	2	—	8
Insertion Loss(dB) (With distribution ratio )	—	3.7	4
Isolation(dB)	18	20	—
VSWR	—	—	1.35
Amplitude Balance(dB)	—	—	0.3
Phase Balance(°)	—	—	5
Impedance(Ω)	—	50	—
Connectors	—	SMA	—
Power Capacity(W)	—	10	—
Operating Temperature(°C)	-30	normal temperature	+70
Physical Dimension(mm,+/-0.1)	—	49.6×33.5×12.8	—
Weight(g)	30	35	40

Other Power Divider

New 2/3/4/8 way power divider ; Low insertion loss, high isolaton, small size;

Communication system for high performance linear power amplifier;

Low cost and high reverse power and reliable performance structure;

Suitable for Mass production, easy installation.

Model No.	Freq. Range (GHz)	IL. (dB)	Isolation (dB)	VSWR Input	VSWR Output	Forward Power (W)	Reverse Power (W)	Connector Type	Temp.(°C)	Dimension L x W x H (mm)
HCW2PD9477A	0.136~0.52	0.5	18	1.3	1.3	50	1	N	-20~+70	94.5×77×22
HCW2PD4273A	0.35~6.0	1.8	16	1.5	1.5	25	1	SMA-F	-55~+85	42×73.5×11.5
HCW2PD6645A	0.4~0.8	0.4	20	1.3	1.3	30	1	BNC-F	-55~+85	66×45×18
HCW2PD5055A	0.4~4.0	1.5	18	1.4	1.4	10	1	SMA, N	-55~+85	50.5×55.5×20
HCW2PD2854A	0.5~2.0	0.5	20	1.3	1.2	30	3	SMA-F	-55~+85	28×54×10
HCW2PD8860A	0.698~2.7 0.8~2.5	0.5	20	1.25	1.25	50	1	SMA, N, BNC	-20~+70	88×60×21
HCW2PD2835A	0.8~2.5	0.5	20	1.3	1.2	30	3	SMA-F	-55~+85	28×35×10
HCW2PD4036A	0.8~4.2	0.7	20	1.4	1.3	30	3	SMA-F	-55~+85	40×36×20
HCW2PD2828A	1.0~2.0	0.4	20	1.3	1.2	30	3	SMA-F	-55~+85	28×28×10
HCW2PD2828B	1.0~4.0	0.5	20	1.3	1.3	30	3	SMA-F	-55~+85	28×28×10
HCW2PD2828C	2.0~4.0	0.4	20	1.3	1.3	30	3	SMA-F-	55~+85	28×28×10
HCW2PD3033A	2.0~8.0	0.7	20	1.3	1.3	30	3	SMA, N	-55~+85	30×33×20
HCW2PD2828D	2.0~8.0	0.7	20	1.3	1.3	30	3	SMA-F	-55~+85	28×28×10
HCW2PD2447A	2.0~18.0	1.0	15	1.8	1.6	30	3	SMA-F	-55~+85	24×47×10
HCW2PD2828E	4.0~8.0	0.5	20	1.3	1.3	30	3	SMA-F	-55~+85	28×28×10
HCW2PD2436A	4.0~18.0	0.8	16	1.8	1.6	30	3	SMA-F	-55~+85	24×36×10
HCW2PD3728A	5.0~6.0	0.6	18	1.4	1.3	10	3	SMA-F	-55~+85	37×28×14

Model No.	Freq. Range (GHz)	IL. (dB)	Isolation (dB)	VSWR Input	VSWR Output	Forward Power (W)	Reverse Power (W)	Connector Type	Temp. (°C)	Dimension LxWxH (mm)
HCW3PD12071B	0.136~0.52	0.5	18	1.35	1.35	50	1	N	-20~+70	120×71×21
HCW3PD12071A	0.698~2.7 0.8~2.5	0.5	19	1.3	1.3	50	1	SMA, N	-20~+70	120×71×21
HCW3PD4152A	2.0~4.0	0.6	18	1.3	1.3	30	3	SMA-F	-55~+85	41×52×10
HCW3PD3766A	2.0~8.0	1.0	18	1.4	1.3	30	3	SMA-F	-55~+85	37.5×66.5×10
HCW3PD3944A	4.0~8.0	0.7	18	1.4	1.3	30	3	SMA-F	-55~+85	39×44×10

Model No.	Freq. Range (GHz)	IL. (dB)	Isolation (dB)	VSWR Input	VSWR Output	Forward Power (W)	Reverse Power (W)	Connector Type	Temp. (°C)	Dimension LxWxH (mm)
HCW4PD160128A	0.136~0.48	0.6	18	1.5	1.4	20	3	SMA-F BNC-F	-30~+70	160×128×16.5
HCW4PD136136A	0.136~0.52	0.5	18	1.35	1.35	50	1	N	-20~+70	136.4×136×21
HCW4PD9976A	0.4~4.0	2.5	18	1.4	1.4	10	3	SMA-F	-35~+65	74.5×99.5×15.5
HCW4PD5676A	0.5~2.0	1.0	20	1.3	1.2	30	3	SMA-F	-55~+85	56×76×10
HCW4PD10172A	0.5~6.0	4.5	18	1.5	1.5	10	3	SMA-F	-35~+65	72.5×101×15.5
HCW4PD12071A	0.698~2.7 0.8~2.5	0.5	18	1.3	1.3	50	1	SMA, N	-20~+70	120×71×21
HCW4PD5650A	0.8~2.5	0.7	20	1.4	1.3	30	3	SMA-F	-55~+85	56×50×10
HCW4PD5643A	1.0~2.0	0.7	20	1.3	1.3	30	3	SMA-F	-55~+85	56×43×10
HCW4PD5643B	1.0~4.0	0.8	20	1.3	1.3	30	3	SMA-F	-55~+85	56×43×10
HCW4PD5643C	2.0~4.0	0.5	20	1.3	1.3	30	3	SMA-F	-55~+85	56×43×10
HCW4PD9452A	2.0~8.0	1.2	20	1.4	1.3	30	3	SMA, N	-55~+85	94×52×18
HCW4PD5650B	2.0~8.0	1.2	20	1.4	1.3	30	3	SMA-F	-55~+85	56×50×10
HCW4PD5458A	2.0~18.0	2.5	15	1.7	1.7	30	3	SMA-F	-55~+85	54×58×10
HCW4PD5643D	4.0~8.0	0.8	20	1.3	1.3	30	3	SMA-F	-55~+85	56×43×10
HCW4PD5060A	4.0~18.0	1.5	15	1.8	1.6	30	3	SMA-F	-55~+85	50.5×60×10
