Blood Cell Analyzer Biochemical Analyzer On Line Water Quality Chemiluminescence Analyzer Syringes Components
1 pcs
MOQ
Blood Cell Analyzer Biochemical Analyzer On Line Water Quality Chemiluminescence Analyzer Syringes Components
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen
Brand Name: Hicorpwell
Certification: CCC & CE
Model Number: HCW-RJ-SY2
High Light:

High Precision Analyzer Syringes Components

,

Biochemical Analyzer Fluid Quantitative Component

Payment & Shipping Terms
Packaging Details: overall dimension (mm):124*12*12 mm
Delivery Time: 10-15working days
Payment Terms: T/T, L/C
Supply Ability: 100 sets Per Week
Specifications
Effective Stroke L(mm): 60
Stepper Motor Step Angle (º): 1.8
Screw Pitch(mm): 2.5
Effective Travel Subdivision Steps: 4800
Linear Distance Per Step Of Motor (mm): 0.0125
Accuracy Of Suction And Drainage: 2%
CV: 1%
Cavity Material: PMMA,POM,PTFE
Product Description

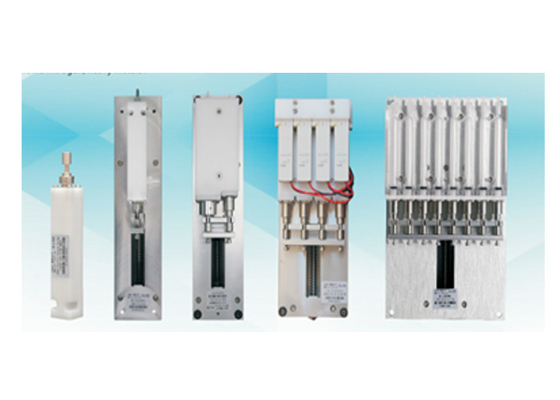

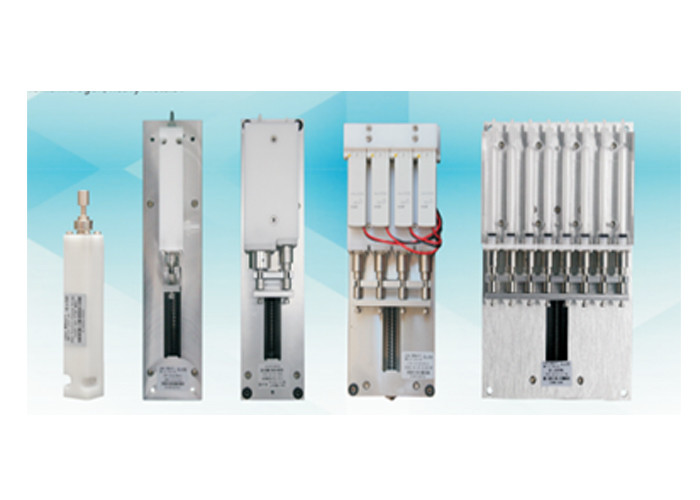

Blood Cell Analyzer Biochemical Analyzer On-line water Quality chemiluminescence Analyzer Syringes Components





Product introduction  Characteristics:



It is a high-precision fluid quantitative component with compact structure, wear resistance and long service life. It can be completely maintenance-free in 2 million life cycles. Long plunger travel distance, high mechanism accuracy, accurate quantification.



Application:

It can be used in analytical equipment with micro-quantitative and high-precision requirements, such as blood cell analyzer, biochemical analyzer, chemiluminescence analyzer and on-line water quality monitoring machine such as COD, ammonia nitrogen, heavy metals .



Specification 100ul 250ul 500ul 1ml 2.5ml 5ml 7.5ml 10ml
Product code 2010 2025 2050 2100 2250 2500 2750 201A
Effective stroke displacement 100ul 250ul 500ul 1ml 2.5ml 5ml 7.5ml 10ml
Effective stroke L(mm) 60
Stepper motor step angle (º) 1.8
Screw pitch(mm) 2.5
Effective Travel Subdivision Steps 4800
Linear distance per step of motor (mm) 0.0125
Accuracy of suction and drainage 2%
CV 1%
Working pressure(MPa) 0.5
Cavity material PMMA,POM,PTFE
Plunger material 316L Ceramic
Working medium Clear water, oil, weak acid and base, strong acid and base, etc.
Thread Interface Form 1/4-28UNF,M6
Number of threaded interfaces (pcs) 1,2
Life cycle 2 million

Remark:

Note 1: In addition to the above specifications, the current nominal specifications can be customized, including parameters such as stroke, displacement, screw pitch, thread interface form, etc.

Note 2: Motor current can be customized according to requirements.

Note 3: Special media such as strong acid and base resistance can be customized.

Note 4: The nominal accuracy of suction and drainage is measured at a range of no less than 2% displacement.

Note 5: The nominal repetition accuracy is measured at a range of no less than 2% displacement.

Note 6: The number of threaded ports can be increased or decreased as required, and the lateral port can be adjusted in four directions: front, back, left or right.

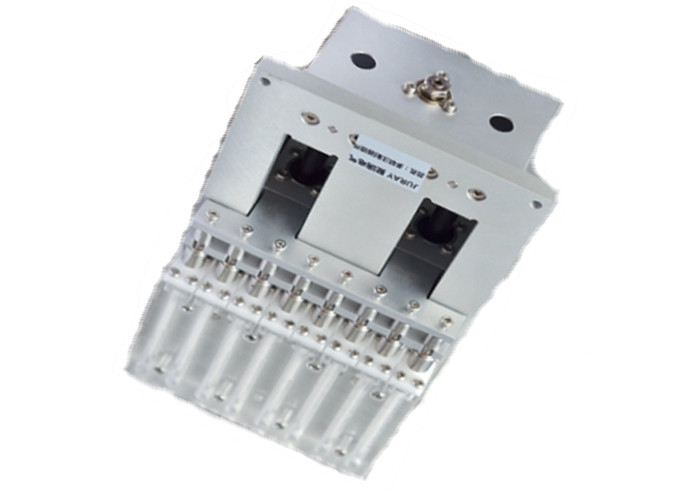

Note 7: Channel number of multi-channel syringe assembly and pump-valve integrated assembly can be customized according to customer requirements







Blood Cell Analyzer Biochemical Analyzer On Line Water Quality Chemiluminescence Analyzer Syringes Components 0Blood Cell Analyzer Biochemical Analyzer On Line Water Quality Chemiluminescence Analyzer Syringes Components 1
