Ribbon Protection Sleeves with Double Ceramic Strength Member for Fiber Protection Fusion Splice Sleeve
500 pcs
MOQ
0.03-0.05USD per pcs
Price
Ribbon Protection Sleeves with Double Ceramic Strength Member for Fiber Protection Fusion Splice Sleeve
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Guangdong Shenzhen
Brand Name: Hicorpwell
Certification: ISO9001 2015
Model Number: Rribbon Protection Sleeves with Double Ceramic Strength Member
High Light:

Fiber Protection Ribbon Protection Sleeves

,

Ribbon Fusion Splice Sleeve

Payment & Shipping Terms
Packaging Details: Fiber Optic Cable Protection Sleeve will packing with standard export carton box
Delivery Time: 5-15 working days based on qty
Supply Ability: 500000 pcs per week
Specifications
Item Name: Ribbon Protection Sleeves
Steel Size: 1mm, 1.2mm, 1.5mm
Application: Protect Splicing Point
Shrinking Temperature Range: 110 To 130°C
Working Temperature: -45 To 110°C
Clad DiameterLength: 25/ 35/45/40/60mm Or Customize
Tensile Strength (Mpa): 20
Raw Material: PE
Product Description

Rribbon Protection Sleeves with Double Ceramic Strength Member for Fiber Protection Fusion Splice Sleeve





Brief Introduction :



Generally speaking, Hicorpwell fiber optic sleeve consists of three parts. The first part is the inner tube made by hot-meltable adhesive. This material can encapsulate the fusion splice joint and provides vibration damping and an environmental seal so as to protect the fiber from damage and contaminants. The second part is a reinforcing strength member outside the inner tube.



The strength member can be made of stainless steel, ceramic or non-metallic. It offers extra rigidity to prevent misalignment, micro bending or breakage of the fiber. The third part is the heat-shrinkable outer tube made of cross-linked polyolefin. This tube provides an instant shrink-force and drives the adhesive liner into all areas of the splice and excludes all the air. The following picture shows the structure of a fiber protection sleeve.



Two Types of Fiber Protection Sleeve



Single Fiber Protection Sleeve

This kind of protection sleeve is used for Single Mode Fiber. Its strength member adopts the stainless steel needles to reduce fiber damage. Typical lengths are 40 mm and 60 mm. The sleeve color is selective, but most people would choose the transparent tube for better inspection of the fiber status.

Ribbon Fiber Protection Sleeve

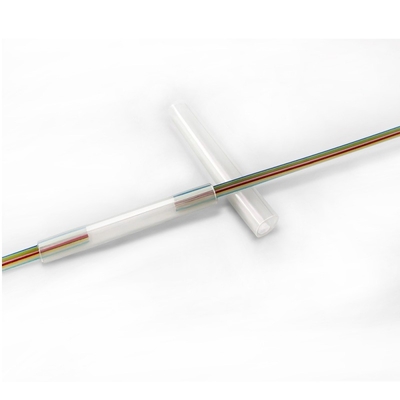

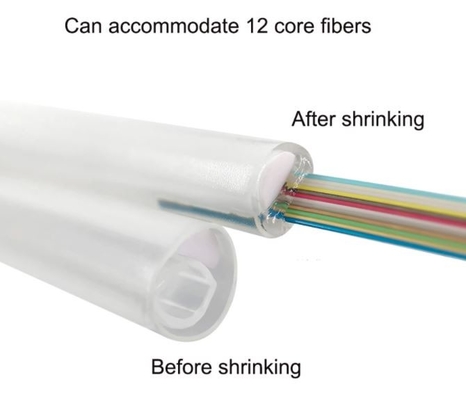

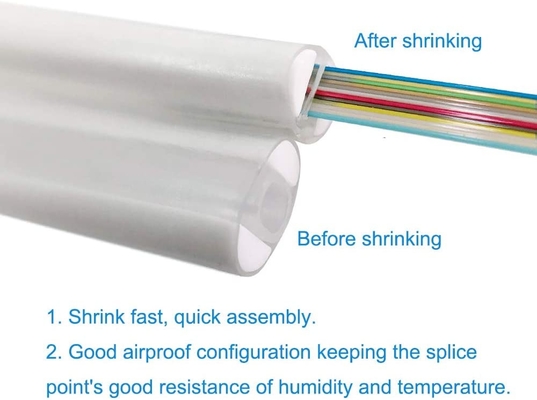

The ribbon type is to protect ribbon splices of multiple fiber counts. The ceramic strength member is used to supporting the splices. Fiber counts in a ribbon sleeve vary from 2 to 12 fibers. The length of the sleeve is usually 40 mm. If stronger protection is required, you can choose the ribbon protection sleeves with double ceramic strength members.

Hicorpwell Fiber Optic Sleeve Characteristics:


Single holed (pre-shrunk)
Clear sleeve design
Smooth stainless steel reinforcing member
Sealing structure suitable to temperature
Extended liner length
Low shrink temperature
Pre installed stainless steel or ceramic rod
Accommodates single or ribbon fibers
Wide range of sizes
Operating temperature -45degree to 100degree
Min. full recovery temp: 120degree


Hicorpwell Fiber Optic Sleeve Application:


Fusion splicing

Fiber cable protecting



Specification





Model

Sleeve Diameter

After Shrink(mm)

Out Tube Length

(mm)

Steel Diameter

(mm)

Steel Length

(mm)

Package

(pcs)

HCW-40 3.0 40 1.5 36 100
HCW-45 3.0 45 1.5 40 100
HCW-60 3.0 60 1.5 56 10



Ribbon Protection Sleeves with Double Ceramic Strength Member for Fiber Protection Fusion Splice Sleeve 0
