GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section

100M
MOQ
negotiation
Price
GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D
Paintcoat Color: Black Or Customized Jacket
Cable Purpose: Outdoor Usage
Length: 300M To 2000M Per Reel.
Application: Outdoor Communication
Operation Temperature: -40~80(℃)
Tensile Resistance(long/short): 1200/1500(N/100mm)
Mini Bending Radius: 40 Mm(Static)
Pressure Resistance(long/short): 3000/4000(N/100mm)
Key Word: GYXTC8Y
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: GYXTC8Y
Payment & Shipping Terms
Packaging Details: 1000m/Reel GYXTC8Y
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000km Per Week
Product Description

GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section

Description :


GYXTC 8Y is suitable for installation in aerial environment for long haul communications.

High tensile strength of stranded wires meet the requirement of self-supporting.

It can also be used for duct and buried method. The metal strength member is similar to the GYTC8S.



Steel wires and loose tubes filled with waterproof compound to ensure compact and longitudinally water blocking.

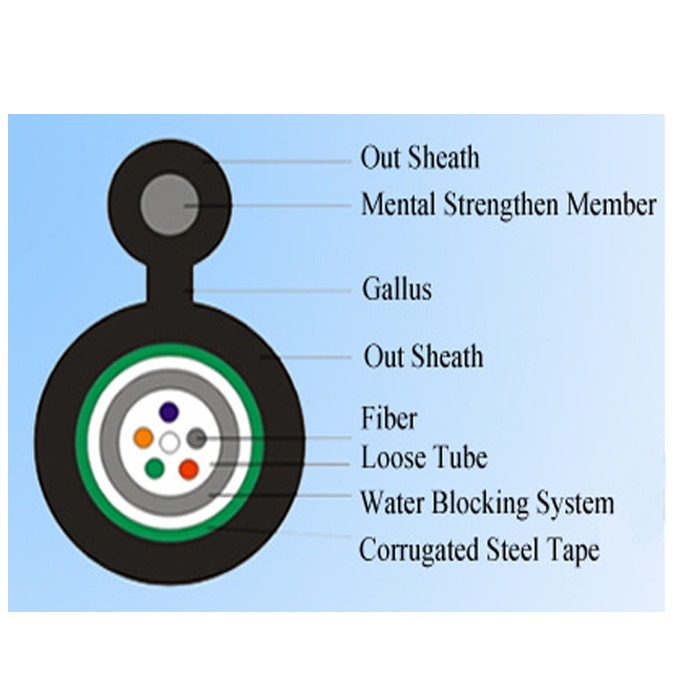

The metal strength member is made up of stranded wires as the supporting part that are completed with a polyethylene sheath to be figure 8 structure. Corrugated steel tape armored and polyethylene outer sheath provide the crush resistance and gun shot resistance features. As the central strength, the steel-wire strength member improves the tensile strength. In addition, it is surrounded by the loose tube and water blocking system.



We can supply various kinds of fiber optic cable,such as GYXTW(S)(Y),GYTS(GYTA),GYXTC8(GYTC8S),GYFTY(GYTY),GYTA(S)



(Y)53,ADSS,GJFJV,etc.We can also provide OEM service and welcome customer's design.



GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section Advantages:

1.Good mechanical and temperature performance.
2.PVC outer sheath and PE inner sheath make cable have nice moisture resistance performance.
3.Crush resistance and flexibility.
4. Small cable diameter,light cable weight,easily to install.
5. We can also provide OEM service,and the packing as customer’s requirement.



GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section



Features:



Excellent mechanical and environmental performance.Small cable diameter, light cable weight, self-supporting, easily to install.Low dispersion and attenuation.Medium density polyethylene jacket: low friction installation, excellent protection from environmental hazards.Stainless steel or galvanized steel self-supporting.Load-supporting element is made of zinc-coated wire provides high resistance grade to long tension.High strength loose tube that is hydrolysis resistant.Light self-supporting cable with the figure-8 shape.

Product perameter



 (Item)   Danwei  Specification
  Unit G. 652

 Mode field diameter   1310nm m 9.2 ± 0.4
  1550nm m 10.4 ± 0.8

 Cladding diameter   m 125.0 1
 Cladding non-circularity   % 1.0
 Core/cladding concentricity error m 0.5
Coating diameter   m 242±7
Coating/cladding concentricity error m 12
 Cable cut-off wavelength   nm 1260
 Attenuation Coefficient   1310nm dB/km 0.36
  1550nm dB/km 0.22

Proof stress level   kpsi ≥100





Fiber Cores  Height Width Length (m) Drum type
  (cm) (cm)

2 70 65 3000 Wooden plate

4 70 65 3000 Wooden plate

6 70 65 3000 Wooden plate

8 70 65 3000 Wooden plate

12 70 65 3000 Wooden plate



Safety during installation:

To minimize the risks of an accident in the work area, follow the existing rules for setting up warning signs, barricades, manhole guards, and cones.Before pulling cable directly from a figure-8 configuration, make sure that the area inside the loop of the cable (figure-8) is clear of personnel and equipment. Failure to do so may result in injury to the personnel or damage to the cable.Ensure that the tools and equipment used for the cable installation are in proper working order. Improperly functioning equipment may damage cables or cause injury to personnel. Be careful when working near electrical hazards, if electric lines are passing through or near the right-of-way where installation is being performed.Bond all metallic components in the underground system together. At all points where anyone may come in contact with the metallic components of the underground cable system, ground the bonded metallic components to a proper earth ground to avoid electric hazards produced by power lines or any other means.

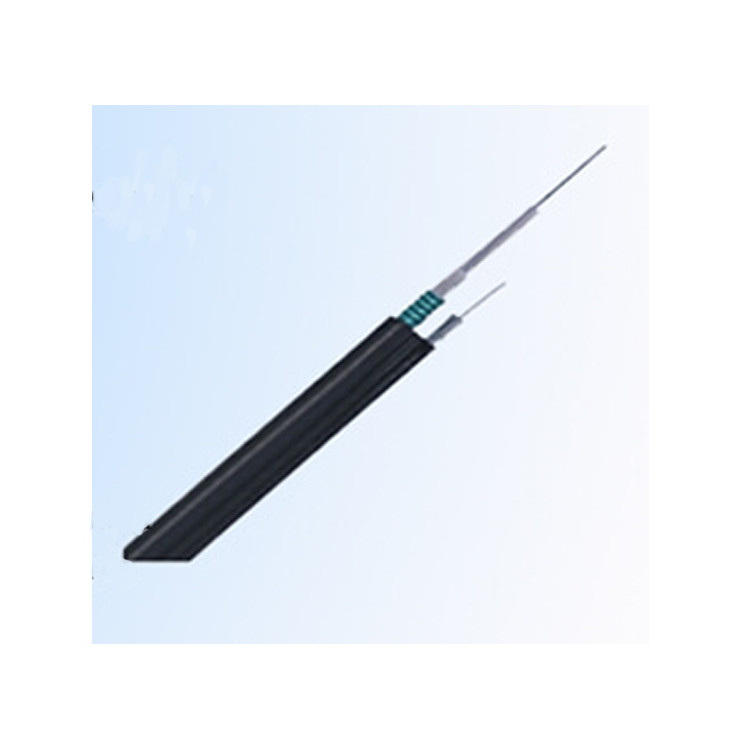

Image of GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section



GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section 0

GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section 1GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section 2GYXTC8Y Light Self-supporting Cable with The figure-8 Shape Cross Section 3
