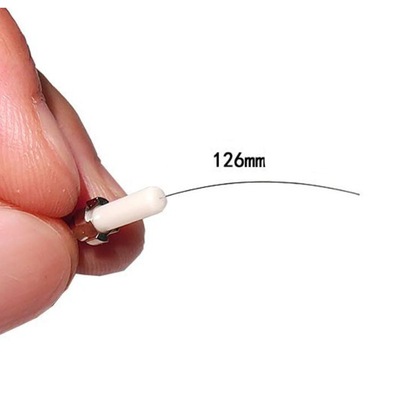

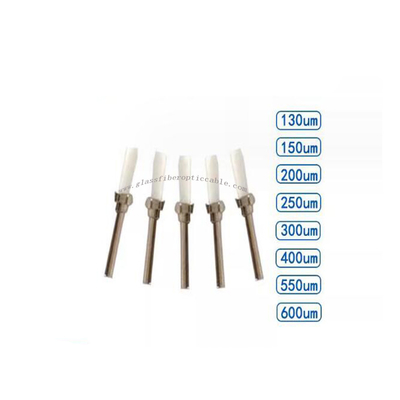

Loss Zirconia Ceramic Ferrules Fiber Optic System Components SC LC 1.249mm SM
Processing equipments
CNC machining center, CNC lathe, grinding machine, automatic lathe machine, conventional lathe machine, milling machine, drilling machine, EDM, wire-cutting machine, CNC bending machine,Punching press, etc
Surface treatment
Heat treatment, polishing, PVD/CVD coating, galvanized, electroplating, spraying, and painting and so on
Testing tool
CMM, Measuring Projector, Mitutoyo Digital Vernier Caliper, Mitutoyo Digital Height Gauge, Feeler Gauge & Plug Gauge & Thread Gauge, Hardness Inspection Instrument, Salt spray testing machine, Fluorescent Magnetic Particle Flaw Detector, Roughness Tester, etc
Samples
Samples can be provided according to customers’ requirements or after get customers’ drawings.
Sample cost should be afforded by customer and return back when place bulk order.
|
O.D.Size |
SC:2.499±0.0005 LC:1.249±0.0005 |
|
I.D.Size |
Customized |
|
Concentricity |
SM≤1.0um MM≤4.0um |
|
Length |
SM10.5±0.05 MM10.5±0.1 LC:6.4+0.1 |
|
Ferrule Type |
SC/LC/APC/Customized |
|
Material |
Zirconia Dioxide |
|
Endface |
Conical type/ Step type/Plane type |
|
Color |
White |
|
Sample |
Free |
|
Type |
SC |
LC |
MU |
APC |
UNIT |
|
O.D.Size(mm) |
SM: 2.4999±0.0005 |
SM: 2.4999±0.0005 |
1.249±0.0005 |
2.499±0.0005 |
φd±0.0005 |
|
MM: 2.4999±0.001 |
MM: 1.249±0.001 |
||||
|
I.D.Size(mm) |
SM: d±0.001 |
SM: d±0.001 |
d±0.001 |
d±0.001 |
d±0.001 |
|
MM: d±0.002 |
MM: 0.126±0.004 |
||||
|
Concentricity(um) |
SM: ≤1.0 |
SM: ≤1.0 |
≤1.0 |
≤1.0 |
Customized |
|
MM: ≤4.0 |
MM: ≤4.0 |
||||
|
Length(mm) |
SM: 10.5±0.05 |
6.4+0.1 |
6.5±0.05 |
10.5±0.05 |
L±0.05 |
|
MM: 10.5±0.05 |
• High precision and Reliability .
• Excellent Strength, Endurability and Anti-aging performance .
• Various types of ferrules and End-faces .
Parking :Carton, Wooden box, or as per the customer’s requirements
Delivery time
In 15-25 days after get the deposit (including tooling making time).
Specification On LC-PC-ceramic-fiber-optic-ferrule...
