Fiber optic cable, also known as optical fiber cable, is a transmission medium that uses optical fibers to transmit optical signals.
It has become a key infrastructure in modern communication networks due to its advantages of high bandwidth, low loss, anti-electromagnetic interference, and large transmission capacity.

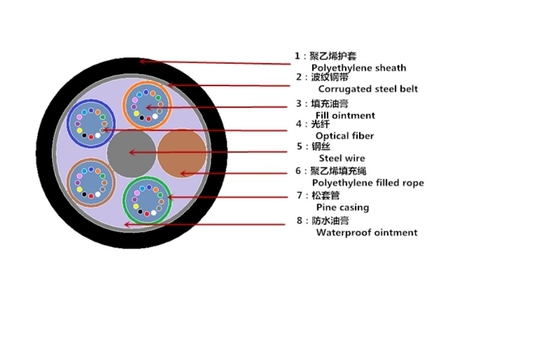

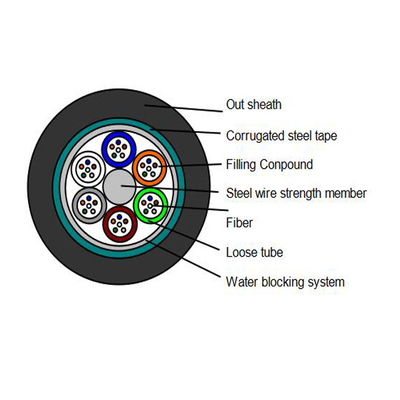

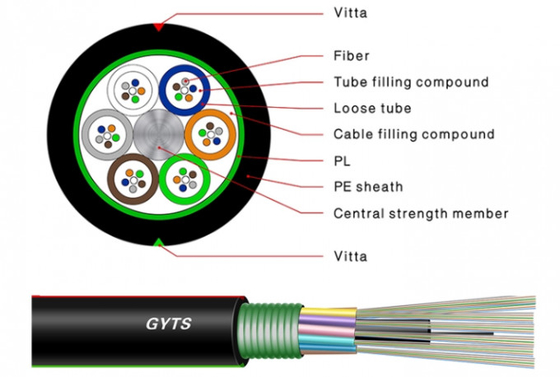

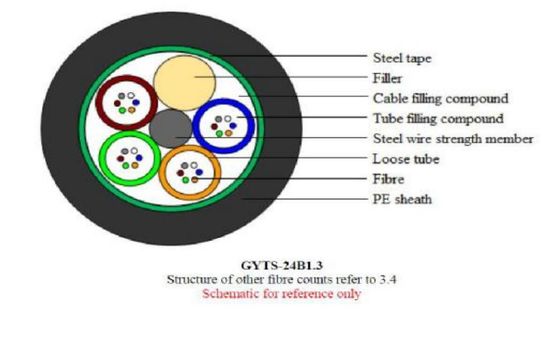

Fiber Optic Cable Components
The innermost part in a fiber cable is typically made of high-purity silica (SiO₂) to guide light signals. Single-mode fiber (SMF) features a small core diameter of 8-10 μm, optimal for long-distance transmission, while multimode fiber (MMF) has a larger core diameter (50/62.5 μm) suitable for shorter distances.
Main Characteristics:
Type: Single-mode Fiber (SMF)
Core Diameter: 8-10 μm
Transmission Distance: 10 km - 100 km+
Typical Applications: Long-distance telecom networks, submarine cables, backbone networks
Type: Multimode Fiber (MMF)
Core Diameter: 50/62.5 μm
Transmission Distance: 200 m - 2 km
Typical Applications: Data centers, campus networks, short-distance video/audio systems
Telecommunications
Long-distance trunk networks, 5G base station backhaul, broadband access (FTTH, Fiber to the Home).
Data Centers
High-speed interconnection between servers, supporting cloud computing and big data transmission.
Industrial and Medical Fields
Industrial control systems (e.g., factory automation), medical endoscopes (due to non-conductive and non-radiative properties).
Sensing and Monitoring
Fiber optic sensors for detecting temperature, pressure, vibration, etc., used in pipeline monitoring, structural health monitoring, and more.
Aerospace and Military
Lightweight, anti-interference characteristics for aircraft wiring and military communication systems.
Product Packaging:
The glass fiber optic cable is carefully wrapped in protective material to prevent any damage during transportation. It is then placed in a sturdy cardboard box with additional cushioning to ensure safe delivery.
Shipping:
We offer fast and reliable shipping for the glass fiber optic cable product. Orders are processed promptly and shipped using trusted carriers to ensure timely delivery to our customers. Tracking information will be provided so you can monitor the status of your shipment.
