D80 High-Power Laser Fiber Cable with 400um 600um Core Active Cooling for 4G Wi-Fi 3G Networks

1
MOQ
D80 High-Power Laser Fiber Cable with 400um 600um Core Active Cooling for 4G Wi-Fi 3G Networks
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Core Diameter: 200μm, 300μm, 400μm, 600μm, 800μm
Cladding Diameter: 500μm, 750μm
Coating Diameter: 780μm, 1100μm
Core Material: Pure Quartz (Low-OH)
Cladding Material: Doped Quartz Material
Numerical Aperture: 0.22
Two Cladding NA: 0.37 Or 0.46
Operating Wavelength: 400-2400 Nm
Cable Length: 3m, 5m, 10m, 20m (customizable)
Protection Tube Diameter: 8 Mm
Fiber Type: Step-index Fiber (standard), Graded-index Fiber (on Request)
Transmission Efficiency: >90%
Max Laser Power: 600W
Connector Type: D80 With Sapphire And Air Gap
Single Package Size: 25X20X1 Cm
Highlight:

400um 600um Core Laser Fiber Cable

,

4G Wi-Fi 3G Networks High-Power Fiber Optic Cable

,

High-Power Laser D80 Fiber Cable

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Hicorpwell
Model Number: D80
Payment & Shipping Terms
Product Description
D80 High-Power Laser Fiber Cable 400um 600um Core with Active Cooling
The Hicorpwell D80 fiber features precision ground end faces, large core diameters, air gap technology, and sapphire D80 connectors. Capable of transferring high-power laser up to 600W through a single fiber with stable transmission efficiency exceeding 90%.

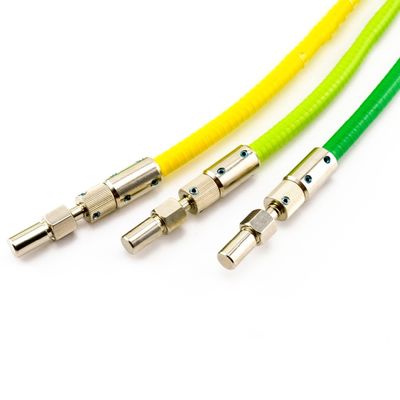

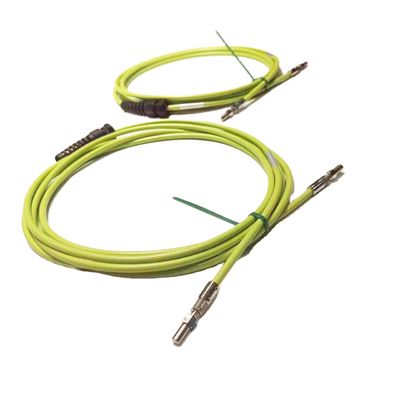

D80 High-Power Laser Fiber Cable with 400um 600um Core Active Cooling for 4G Wi-Fi 3G Networks 0 D80 High-Power Laser Fiber Cable with 400um 600um Core Active Cooling for 4G Wi-Fi 3G Networks 1
Key Features
  • Precision polished D80 fiber connectors
  • Sapphire and air gap protection
  • Step-index fiber optimized for VIS-NIR wavelengths
  • 0.22NA standard (other specifications available)
  • No-glue technology for improved heat dissipation
  • Compatible with 3G/4G Wi-Fi networks
Technical Specifications
Product model(µm) ST200E ST300E ST400E ST600F
Core diameter(µm) 200 300 400 600
Cladding diameter(µm) 500 500 500 750
Coating diameter 780 780 780 1100
Core material Pure quartz (Low-OH)
Cladding material Doped quartz material
Numerical aperture(NA) 0.22
Two cladding numerical(NA) NA 0.37 OR NA 0.46
Operating wavelength(nm) 400-2400
Length(m) 3, 5, 10 (default length is 5 meters, customizable)

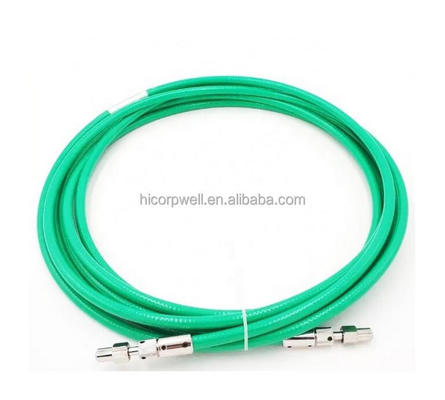

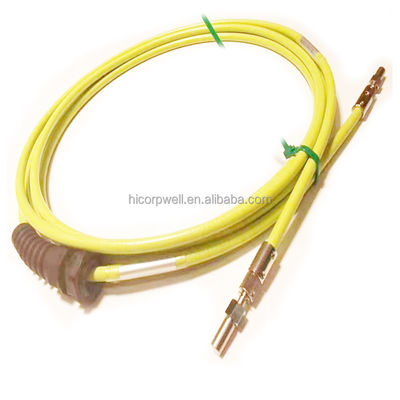

D80 High-Power Laser Fiber Cable with 400um 600um Core Active Cooling for 4G Wi-Fi 3G Networks 2 D80 High-Power Laser Fiber Cable with 400um 600um Core Active Cooling for 4G Wi-Fi 3G Networks 3
Additional Specifications
Fiber Core Diameter (μm) 200, 300, 400, 600, 800
Fiber Core Material High purity fused silica (Low-OH)
Fiber Type Step-index fiber as standard; Graded-index fiber on request
Numerical Aperture (NA) 0.22 as standard, others on request
Operating Wavelength (nm) 400-2400
Protection Tube Diameter (mm) 8
Cable Lengths (m) 3, 5, 10, 20, etc. (customizable)
Applications
  • High power laser transmission
  • Laser welding and cutting
  • Laser marking
  • Atmospheric spectrum measurement
  • Laser cleaning

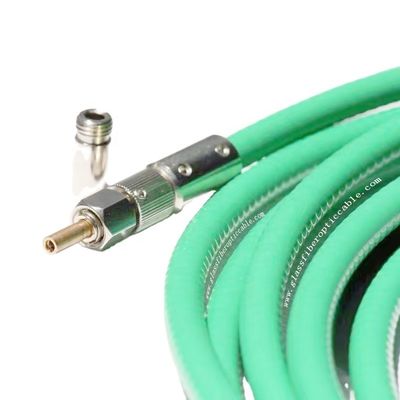

D80 High-Power Laser Fiber Cable with 400um 600um Core Active Cooling for 4G Wi-Fi 3G Networks 4
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q2: What is your delivery time?
A: Generally, samples: 3-5 working days. Formal orders: 7-10 working days.
Q3: Do you provide OEM service?
A: Yes, we can print your logo or label on the products or packaging.
Q4: Can you provide free samples?
A: Some low-value samples can be free, but you need to pay for shipping.
Q5: How do you guarantee quality?
A: All products are 100% tested before shipment under our quality management system.
Q6: What are your payment terms?
A: We accept T/T, Western Union, MoneyGram, PayPal. Samples: 100% payment. Orders: 30% deposit, 70% balance before shipment.
