D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors

1
MOQ
$238.98-262.72
Price
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber-core Diameters: 200μm, 300μm, 400μm, 600μm, 800μm
Cable Length: 3m, 5m, 10m, Customizable
Core Diameter: 200μm, 300μm, 400μm, 600μm
Cladding Diameter: 500μm, 750μm
Coating Diameter: 780μm, 1100μm
Core Material: Pure Quartz (Low-OH)
Cladding Material: Doped Quartz Material
Numerical Aperture: 0.22
Operating Wavelength: 400-2400 Nm
Protection Tube Diameter: 8 Mm
Transmission Efficiency: >90%
Maximum Power: 600W
Fiber Type: Step-index Fiber
Connector Type: D80 Connector
Package Size: 25X20X1 Cm
Highlight:

200μm to 800μm D80 Fiber Cable

,

Sapphire and Air Gap Protection Fiber Optic Patch Cord

,

Precisely Polished D80 Fiber Connectors High Power Laser Cable

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Hicorpwell
Model Number: D80
Payment & Shipping Terms
Product Description
High Power Fiber Laser for Metal Cutting and Welding Standard Connectors Fiber Laser Active Cooling Laser Cable

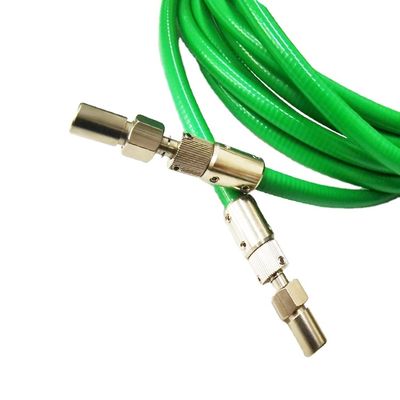

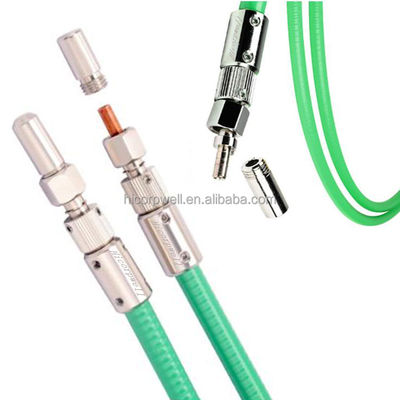

D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 0 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 1
D80 High Power Laser Cable Overview
The D80 fiber cable features sapphire and air gap protection in its connectors, enabling it to sustain laser power up to hundreds of watts in a single fiber with over 90% transmission efficiency. Designed for wavelength ranges from visible to near infrared (VIS-NIR, 400-2400 nm), it's ideal for high-power semiconductor lasers, solid-state lasers, and fiber lasers.

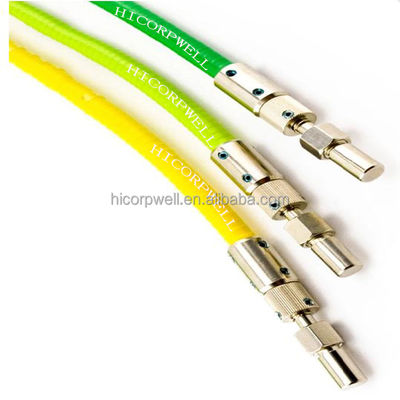

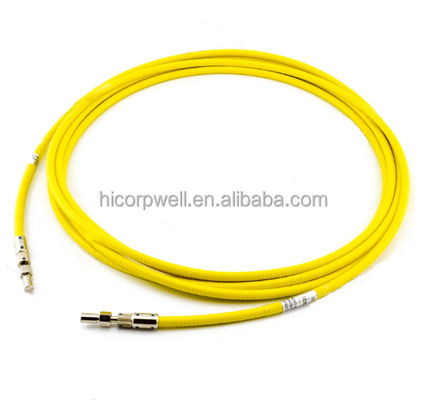

D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 2 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 3
Key Applications
  • High power laser transmission
  • Laser welding and cutting
  • Laser marking
  • Atmospheric spectrum measurement
  • Laser cleaning
Technical Specifications
Product model(µm) ST200E ST300E ST400E ST600F
Core diameter(µm) 200 300 400 600
Cladding diameter(µm) 500 500 500 750
Coating diameter 780 780 780 1100
Core material Pure quartz (Low-OH)
Cladding material Doped quartz material
Numerical aperture(NA) 0.22
Operating wavelength(nm) 400-2400
Length(m) 3, 5, 10 (default 5 meters, customizable)

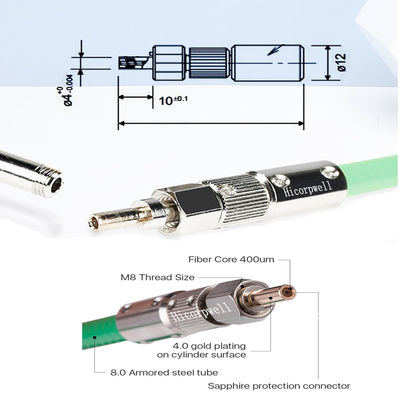

D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 4 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 5
Product Features
  • Sapphire D80 connector with air gap
  • High quality stainless steel jacket
  • Large core diameter (200-800µm available)
  • Precisely polished D80 fiber connectors
  • Step-index fiber optimized for VIS-NIR
  • 0.22NA as standard (others available on request)
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q2: What is your delivery time?
A: Generally, samples: 3-5 working days; formal orders: 7-10 working days.
Q3: Do you provide OEM service?
A: Yes, we can print your logo or label on the products or packaging.
Q4: Can you provide free samples?
A: Some low-value samples can be free, but shipping costs are the customer's responsibility.
Q5: How do you guarantee quality?
A: All products are 100% tested before shipment under our quality management system.
Q6: What are your payment terms?
A: We accept T/T, Western Union, MoneyGram, PayPal. Samples: 100% payment. Formal orders: 30% deposit, 70% balance before shipment.
