10/100/1000M Single Fiber Optic Transceivers Media Converter
10/100/1000M Ethernet media converter adopts switching technology to fulfill media conversion.
It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network
connections: 10/100/1000Base-T and 1000Base-SX/LX.
It inter-converts electrical signals of 10/100/1000Base-T twisted pairs with optical signals of 1000Base-SX.

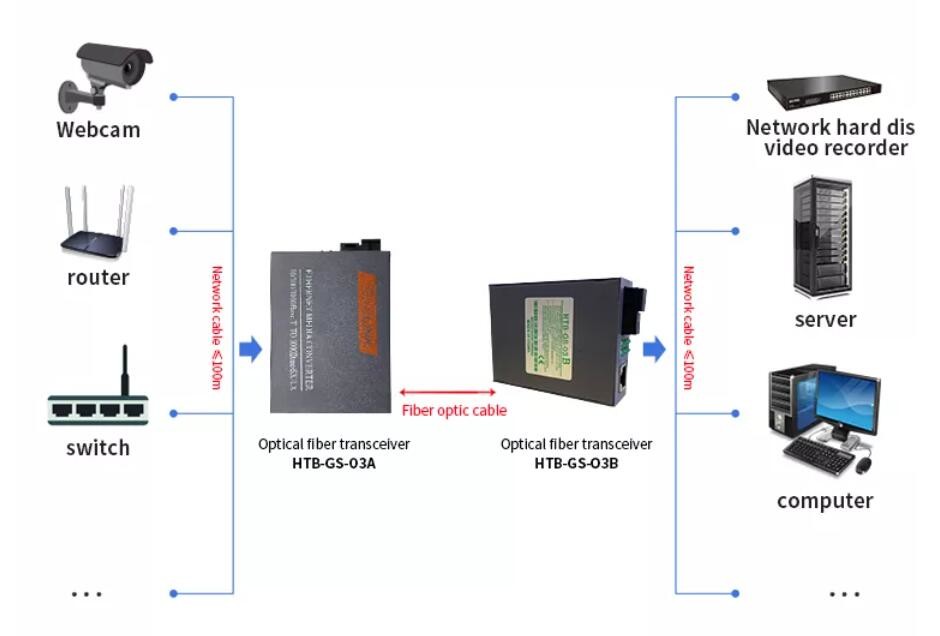

It extends the network transmission distance from 100m to 80km via fiber optical cable.
It supports transmission in multi-mode single fiber; single-mode single fiber.
Features
Ø Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-SX
Ø Supporting full-duplex and half-duplex and its auto-sensed
Ø Supporting automatic cross connection of twisted pair interfaces,
facilitating system commissioning and installation.
Ø Supporting the transmission of extra-long VLAN packets
Ø Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
Ø Supporting STP to form a redundant network
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
|
Wavelength |
1310/1550nm |
|
Transmission distance |
Multi-mode:2 km; single-mode:20km~80km; Category-5 twisted pair: 100m |
|

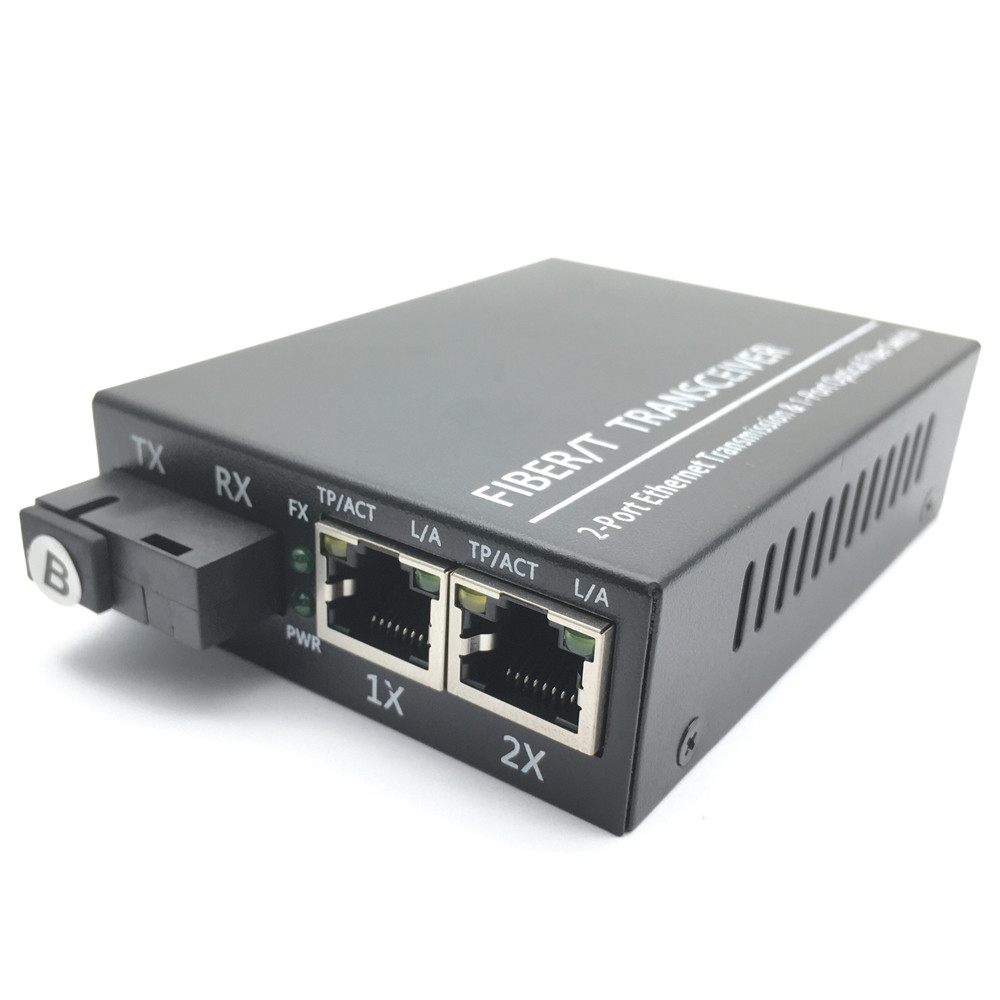

Port |
One RJ45 connector: connected to STP/UTP category-5 twisted pair One optical port: MM: SC/ST/FC (fiber size: 50,62.5/125µm) SM: SC/ST/FC (fiber size: 9/125µm) |
|
Conversion means |
Media conversion |
|
Delay |
<10us |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|

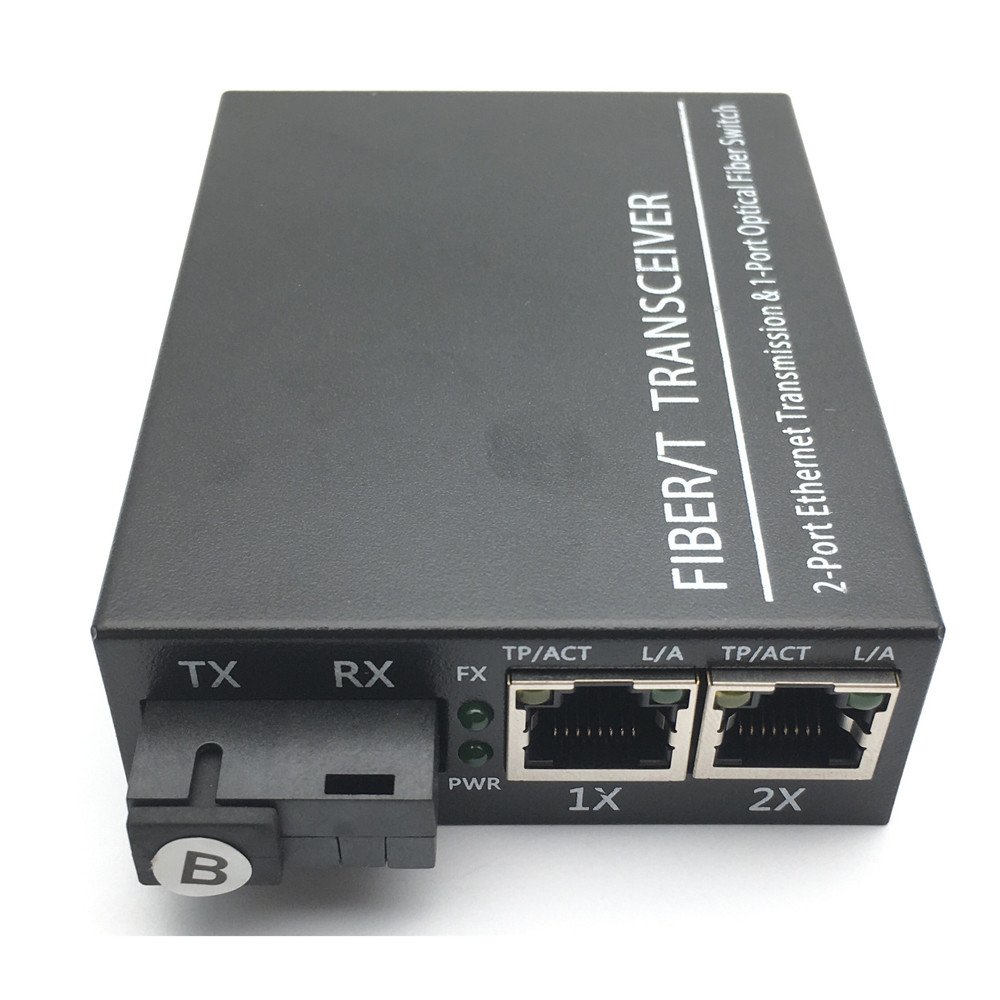

LED |
PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding) |
|

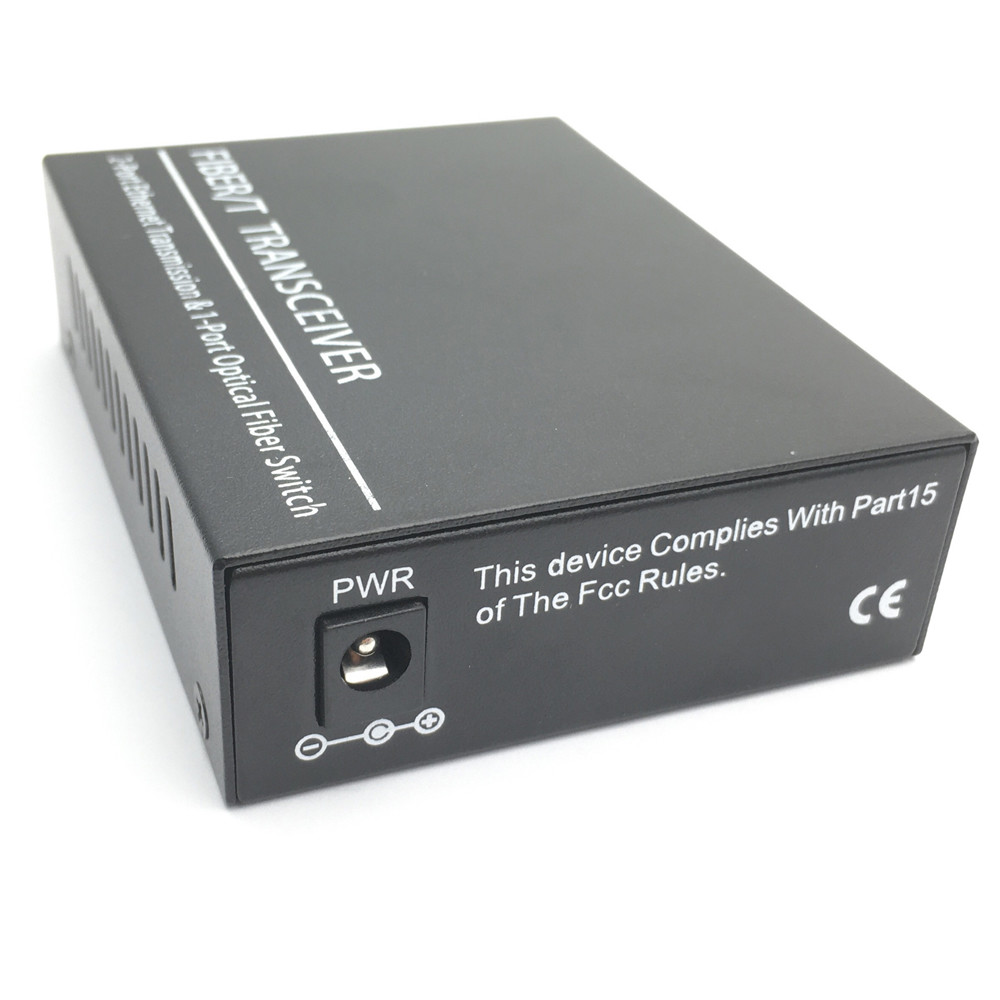

Power |
AC220 0.5A/DC-48 (built-in) |
|
Power consumption |
5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
26mm (H) * 70mm (W) * 94 mm (D) (external power supply) |
|
30mm (H) * 110mm (W) * 140 mm (D) (internal power supply) |
