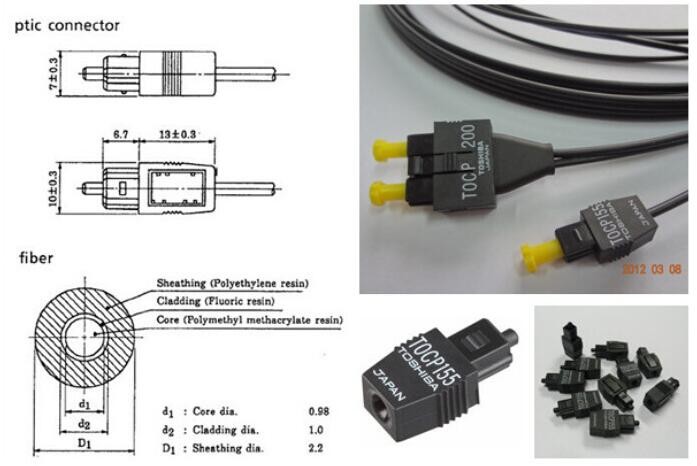

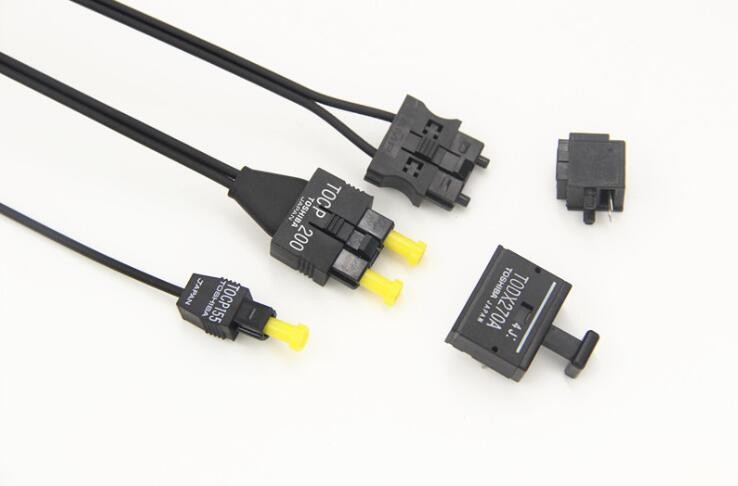

Original Plastic Fiber Optical Patch Cable Toshiba TOCP 200 Optical Fiber cable
APPLICATIONS
1. Industrial automation control system
2. Industrial robot system and servo system
3. Easy to install and connect without maintenance.
4. Digital multimedia systems
5. Medical sensor system
6. Compliance with Profibus, Interbus, ControlNet and SERCOS standards
FEATURES
1. Light in weight; energy saving and safe;
2. High bandwidth; excellent flexibility; vibration resistance;
3.Anti-electromagnetic interference; stable and reliable signal transmission;
4.Easy to install and connect; maintenance easily;
5. Medical Sensing System
6. Power system, etc.
Scope of application and parameters
| parameter | Company | numerical value |
| Core diameter | mm | Φ1000um,200/230um |
| Core material | -- | PMMA/gof |
| diameter | mm | Φ2.2mm-10.0mm |
| Outer material | -- | PE/PVC |
| wavelength | -- | 650nm/850nm |
| attenuation | dB/km | <180 |
| Bending radius | -- | 5 x core Diameter |
| numerical aperture | NA | 0.5 |
| Durability | -- | 2000 |
| Splice Loss | dB | <0.5 |
| working temperature | ℃ | -40℃-+75℃ |
| vibration test | ℃ | 1.0dB(5～50Hz,1.5mm) |
| meet a criterion | --- | ROHS,REACH,UL |
| Tensile test | KG | ≥5KG |
