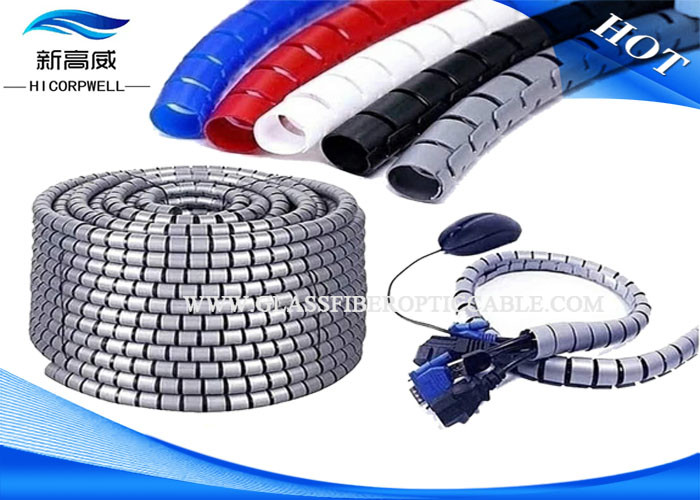

Spiral Corner Edge Protection Guard for Hydraulic Rubber Hose
Performance
1)The shore hardness of rubber hose protector is generally 85 to 90 degrees
2)Good oil resistance
3)Good abrasion resistance
4)Good tensile strength and impact resistance.
Tensile strength at room temperature is generally 25 ~30Mpa;
Impact strength(unnotched):continue
5)Has good UV resistance.
Black spiral protection sleeve product line by adding a certain ratio of car
bon black to enhance the spiral wrap UV protection properties. This is the black spiral wrap sleeve pr
otective cover than the other colors better UV performance reasons
6)Good antistatic property
Spiral guard using the original modified pp material, shiny appearance, good resilience, its wear resistance, anti-aging, oil resistance, corrosion resistance superior performance, the appearance of a spiral wound around the outside of the product to extend the internal tube 3 ~ 5 years of use time.
| color | black, red, blue, yellow |
| Material | PP |
| Product packaging | bags or cartons are ready for the detailed 2 meters/root, black are all in stock and specific length and color should be customized. |
| Applicable specifications | inside diameter is 8 ~ 250 mm,product surface is round, flat |
| Product features | enhance the internal product, such as the hydraulic hose, wire and cable of wear-resisting, anti-static, anti-ultraviolet, flame retardant performance, in various harsh environment of hydraulic hose and other internal product protection, extend the service life of internal product can reach more than 3 years. |
| Product advantages | abrasion resistance, ageing resistance, corrosion resistance, antistatic, flame retardant, easy installation, environmental protection and energy saving, beautiful appearance |
| Scope of application | engineering machinery, hydraulic pipe, rubber hose, wire and cable and other heat resistance - 40 ~ 120 ℃ |
Product Details
| Warranty | 12months |
| Package | plastic film, carton |
| Delivery time | 10-20days after paying the advanced payment |
| Port | Shenzhen , HK ,or as clients requirement |
| Payment way | T/T, L/C, Western Union |
| Business Type | Factory |
| Intallation | Manual winding |
| Clients | Zoomlion, XCMG,Liugong Group |
| Item Code | I.D | Thickness | Width | Applied for | |||
| mm | inch | mm | mm | mm | |||
| GPS-8 | 8 | 5/16" | 1.5 | 7 | 8-10 | ||
| GPS-10 | 10 | 3/8" | 1.5 | 10 | 10-12 | ||
| GPS-12 | 12 | 1/2" | 1.5 | 12 | 12-14 | ||
| GPS-14 | 14 | 11/20" | 1.5 | 13 | 14-16 | ||
| GPS-16 | 16 | 5/8" | 2 | 15.5 | 16-18 | ||
| GPS-18 | 18 | 3/4" | 2 | 16 | 18-20 | ||
| GPS-20 | 20 | 4/5" | 2.2 | 16 | 20-22 | ||
| GPS-22 | 22 | 43/50" | 2.2 | 19.5 | 22-25 | ||
| GPS-25 | 25 | 1" | 2.2 | 22.5 | 25-28 | ||
| GPS-28 | 28 | 1-1/10" | 2.2 | 23 | 28-30 | ||
| GPS-30 | 30 | 1-9/50" | 2.5 | 23 | 30-32 | ||
| GPS-32 | 32 | 1-1/4" | 2.5 | 23.5 | 32-35 | ||
| GPS-35 | 35 | 1-19/50" | 2.5 | 24 | 35-38 | ||
| GPS-38 | 38 | 1-1/2" | 3 | 28 | 38-40,42 | ||
| GPS-40 | 40 | 1-29/50" | 3 | 28 | 40-42 | ||
| GPS-42 | 42 | 1-13/20" | 3.5 | 28 | 42-45 | ||
| GPS-45 | 45 | 1-39/50" | 3.5 | 28 | 45-50 | ||
| GPS-50 | 50 | 2" | 3.5 | 28 | 50-60 | ||
|
GPS-60 |
60 | 2-1/2" | 4 | 28 | 60-74 | ||
| GPS-74 | 74 | 2-9/10" | 4 | 46.5 | 74-80 | ||
| GPS-80 | 80 | 3-3/20" | 4.5 | 48.5 | 80-88 | ||
| GPS-88 | 88 | 3-1/2" | 4.5 | 50 | 88-100 | ||
| GPS-100 | 100 | 4" | 4.5 | 57 | 100-130 | ||
| GPS-130 | 130 | 5" | 4.5 | 50 | 130-155 | ||
| GPS-150 | 150 | 6" | 4.5 | 50 | 150-200 | ||
| GPS-200 | 200 | 7-22/25" | 5 | 50 | 200 | ||
