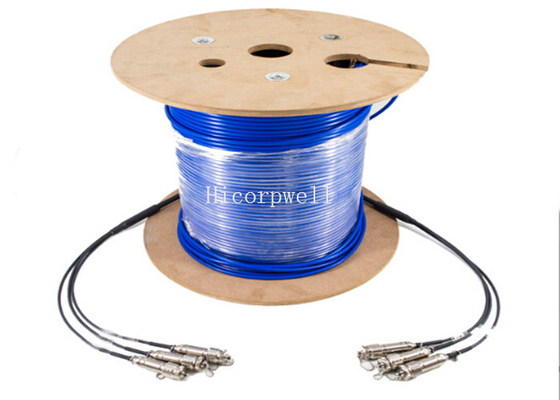

CPRI Waterproof Outdoor Fiber Cable Assembly IP67 ODC 4 Cores Plug Connector
ODC connectors are designed for the fiber to antenna(FTTA) applications,
ODC fiber optic connector can withstand harsh environmental conditions when being used in outdoor
applications.
They are used for data and telecommunications in mobile radio, process, utility and traffic automation.
ODC connector is next generation connectors for wireless base station application
(WCDMA/TD-SCDMA/CDMA200/Wi-MAX/GSM) that can meet the requirements of FTTA
(fiber to the top of the tower).
These connectors meet the highest quality and robustness standards, and they offer reliability and flexibility for outdoor applications.
The odc connectors,together with the support optical cable,are becoming the standard interface specified in 3G,4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications.
The ODC cable assembly is based on the N Type RF Coax connector. ODC to LC fiber optic cables are instock.
1. 2fibers,4fibers,singlemode or multimode
2. Compact design with 2×1.25mm ferrules
3. Built-in socket with square or hexagonal flange
4. Extension connector for cable chaining
5. Screwed locking mechanism
6. Easy and safe installation
7. Water proof,dust proof and corrosion resistant
8. Water proof protection caps
9. EMI protected
10. RoHs compliant
11. Fulfills performance standard IEC 61753-1 Cat.E
| Technology | Full ceramic ferrule and sleeve | |
| Housing material | Nickel plated brass | |
| Mechanical performance | ODC plug | ≤1000 N tensile load≤30 N static side load |
| ODC socket | ≤30 N tensile load | |
| Installation torque force | min.1Nm | max.2Nm |
| Operating temperature | IEC 61300 – 2 – 22 | -40℃ up to +85℃ |
| Mating durability | 1000 cycle | |
| Ingress protection(mate) | IEC60529 | Ip 68 |
| Salt mist | IEC61300-2-26 | 30 days passed |
| Vibration | IEC61300-2-1 | Pass 10-500Hz/10g |
| Shock | IEC61300-2-9 | Pass 100g |
