Optical Fiber patch cord ,LC/ UPC , OM3 2F, MM Simplex fiber optic cable
High Quality and Cost-effective 9/125μm SM Breakout fiber patch cord
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord
provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs
and central offices.

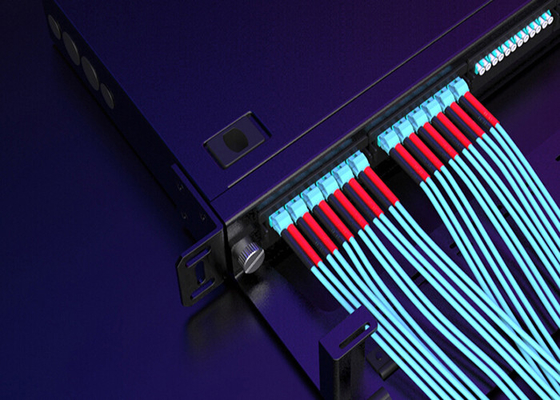

The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the
electronic equipment and providing patching within the fiber paths.
Our Breakout fiber patch cord can be used as a building backbone or horizontal distribution,
and they are operating in an uncontrolled or harsh environment.
|Fiber count||2||Fiber Mode||9/125μm|
|Connector Type1||LC/PC||Connector Type2||LC/PC|
|Fiber Mode||9/125μm||Breakout length||0.5m|
|Operating temperature||-40~75°C||Storage temperature||-45~85°C|

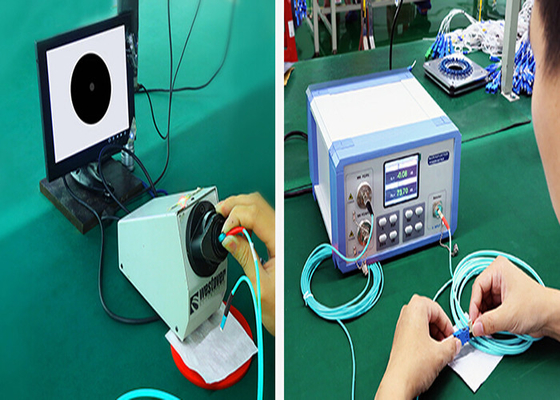

Geometric Specification (only for 3D interferometer tested)
|Test items||Connectors||PC End-face||APC End-face|
|Radius of Curvature||SC/FC/ST||10~25 mm||5~12 mm|
|LC/MU||7~25 mm||5~15 mm|
|Apex Offset||≤50 um|
|Fiber Spherical Height||+/- 50 nm|
|Angular Offset||------||8°± 0.2°|
LC patch cord is a fiber optic cable used to attach one device to another for signal routing. LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the SC.
UPC stands for Ultra Physical Contact.The end faces are given an extended polishing for a better surface finish. These connectors are often used in digital, CATV, and telephony systems.
APC stands for Angled Physical Contact The end faces are still curved, but they’re angled at an industry-standard eight degrees. This maintains a tight connection. These connectors are preferred for CATV and analogue systems.
How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances
of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
|Designation||Fiber Dia.(μm)||Type||Fast Ethernet 100BASE-FX||1 Gigabit Ethernet 1000BASE-SX||1 Gigabit Ethernet 1000BASE-LX||10Gbps Ethernet 10GBASE||40Gbps Ethernet 40GBASE SR4||100Gbps Ethernet 100GBASE SR4|
|Singlemode||9/125||Singlemode||2000 Meters||5km at 1310nm||5km at 1310nm||10km at 1310nm||N/A||
