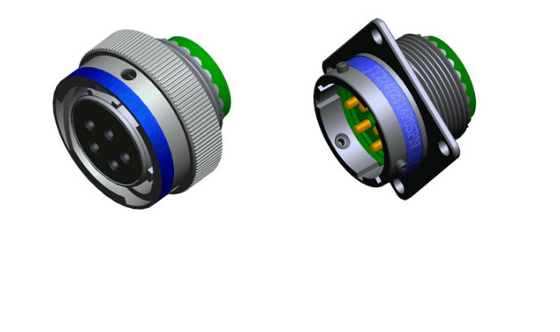

Outdoor waterproof fiber optic connector J599 applies tri-start thread and five-key positioning, it’s anti-vibration and wrongly plugging
can be avoided. Made with stainless steel 316L, it’s featured as high-density, anti-electromagnetic shielding,
low insertion loss, high reliability, and easy to install with removable parts.
And it’s also water/ dust proof, and anti-corrosion.
It’s mainly used in Marine communication, airborne communication, military,
and very harsh environments like extremely acid, hydrochloric and humid areas.
1core, 4cores, 8cores and 12cores are optional.
Tactical Connector Designed for military field fiber optic cable supporting, neutral bayonet locking
structure can be realized head and seat, head and head, seat and seat fast any connection.
With multi-core once connected and blind insertion; connection loss, high reliability; rugged, waterproof,
dustproof, resistance to harsh environments, etc.,
can be used in a variety of optical fiber communication network field army, military computer systems,
airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.
military tactical fiber optic cables designed specifically for tactical/harsh environment connectors
such as Plug and Receptacle systle(stainless steel 316L).

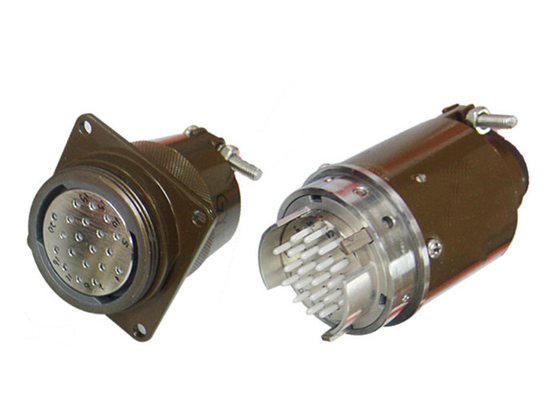

Optic Fiber multiway connectors are made up of a mating pair(socket and plug) which equipped with
male(pin) or female interface contacts,
It’s featured with fiver-key position that prevent mis-mating and anti-electronmagnetic shielding.
And 1Core,4Cores,8Cores and 12Cores are optional.
Our military tactical fiber optic patch cables are used in aerospace, airborne, marine, ground
vehicle,tactical and even automotive commercial applications.
The portable cable Deployment reels(stainless hardware): H51XW47.5XD34.5cm, and designed for a
quick cable deployment and recovery, owning to the excellent clutching system,durable mounted wheels
and retractable transport handle, the military tactical optic patch cables have an efficient performance
when it applied in broadcast,military and mining.
Applications
●Tactical Communication Connection
● Oil, Mine Communication Connection
● Remote Wireless Base Station
● CCTV System
● Fiber Sensor
● Railway signal Control Application
● Intelligent Power Station Communication
| Connector | End A | Multichannel Hermaphroditic Beam Fiber Optic Connector | |||
| End B | LC,or SC,FC,ST...... | ||||
| Cable Diameter(mm) | 4.0mm/ 7.0mm/ 8.0mm | ||||
| Material of jacket | TPU | ||||
| Fiber Core | 4,8,12 or specified | ||||
| Mode | Singlemode | Multimode | |||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
| Polishment | UPC | APC | UPC | ||
| Insertion Loss(Max.dB) | 1.5 | 1.0 | |||
| Return Loss(Min.dB) | 50 | 35 | |||
| Mechanical Features | Plug | ≤1000N(main cable) | |||
| Socket | ≤100N(Branch cables) | ||||
| Grade | IP68 | ||||
| Mating time | 500 Min | ||||
| Durability(Max.dB) | 0.2 | ||||
| Reaptability(Max.dB) | 0.5 | ||||
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
