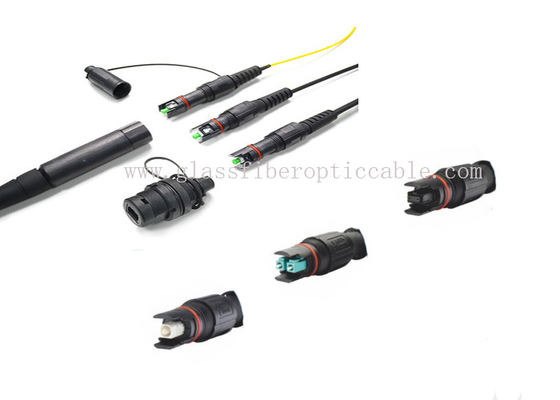

This Waterproof IP Connectors With Customized Outdoor Box Mostly , Used for 5G Telecom Station,
contains an adaptor SC or LC types and inner connector as the basis for coupling inside the adaptor/connector housing.
These connectors, used alone or integrated into hardware products, must be able to protect against
environmental factors common in the outside plant, such as extreme temperatures, moisture, humidity,
and other harsh conditions.
Waterproof IP Connectors cable assembly is specifically designed to significantly reduce required
drop cable installation.
Specification
| Fiber type | SM(9/125)G657A1 |
| Fiber count | 1core |
| Polish | APC |
| Insertion Loss | ≤0.3dB(APC) |
| Return Loss | ≥60dB(APC) |
| Operating temperature | -40°C to +85°C |
| Standards | UL GR-3120-core tested |
| Durability | 500 cycles |
| Ferrule material | Full ceramic zirconia |
Application :
Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.)
deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.
Automation and industrial cabling.
It provides highest reliability and operating safety.
The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock,
strongest vibration, or accidental misuse.
