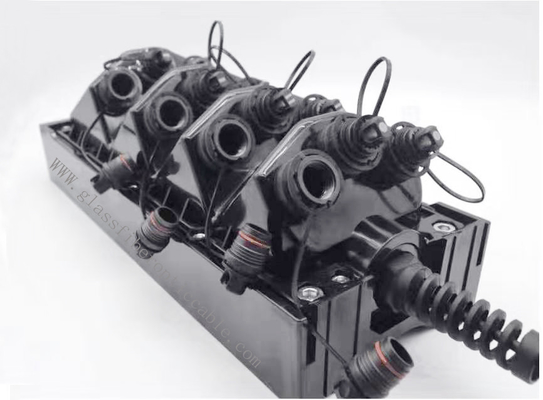

Waterproof IP Connectors Fiber Optic Patch Cables Mini SC LC MPO Mechanical Resistance
IP waterproof connectors , it suits for harsh environment cable assemblies are installation-friendly for fixed or mobile applications
and transmit reliably data over long distances under severe environmental conditions.
Key Features
1• Robust fiber-optic connector for 12 channels with screwed mating mechanism
2• IP67 protection, salt-mist proof, and EMI protection
3• High shock, vibration, and mechanical resistance
4• Broad temperature range and wide range of indoor and outdoor cables
5• Easy, reliable and cost-effective installation
Optical performance
1. Insertion loss / IEC 61300-3-34
2. singlemode typ. ≤ 0.2 dB 97% ≤ 0.45 dB
3. multimode typ. ≤ 0.2 dB 97% ≤ 0.50 d
Return loss / IEC 61300-3-6 singlemode ≥ 50 dB
Product Parameters
Connector
End A |
Multichannel Hermaphroditic Beam Fiber Optic Connector |
||||
End B |
LC,or SC,FC,ST...... |
||||
Cable Diameter(mm) |
4.0mm/ 7.0mm/ 8.0mm |
||||
Material of jacket |
TPU |
||||
Fiber Core |
4,8,12 or specified |
||||
Mode |
Singlemode |
Multimode |
|||
Operating Wavelength(nm) |
1310/1550 |
850/1310 |
|||
Polishment |
UPC |
APC |
UPC |
||
Insertion Loss(Max.dB) |
1.5 |
1.0 |
|||
Return Loss(Min.dB) |
50 |
35 |
|||
Mechanical Features |
Plug |
≤1000N(main cable) |
|||
Socket |
≤100N(Branch cables) |
||||
Grade |
IP68 |
||||
Mating time |
500 Min |
||||
Durability(Max.dB) |
0.2 |
||||
Reaptability(Max.dB) |
0.5 |
||||
Operating Temperature(℃) |
-40~+85 |
||||
Storage Temperature(℃) |
-40~+85 |
Application :

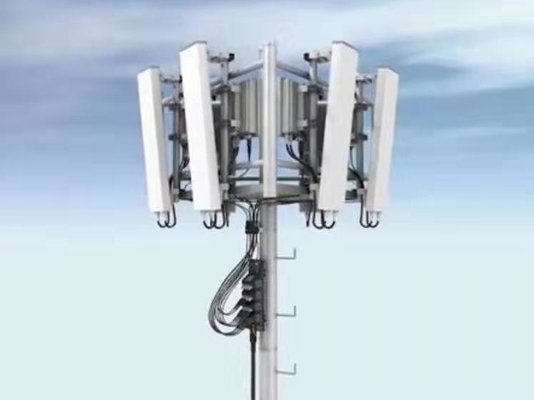

Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.
Automation and industrial cabling
ODVA provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.
Surveillance systems
Security camera manufacturers chooseODVA connectors for its compact size and robust design. ODVA assemblies are easy to install even in areas difficult to access and provide highest installation safety.
Naval and ship building
The high corrosion resistance convinced both naval and civil ship builders to use ODVA assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.
Broadcast
offers a range of mobile cabling systems and ODVA assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.
