High Power SMA905 Medical Military Laser Fiber Optic Patch Cord
1set
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: SMA905
High Light:

SMA905 Fiber Optic Patch Cord

,

0.20NA Fiber Optic Patch Cord

,

0.37NA High Power Fiber

Payment & Shipping Terms
Packaging Details: Polybag and Carton Package size: 25X20X38 cm
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs Per Week
Specifications
Keyword: High Power Fiber-SMA905
MOQ: 1 Pcs
Leadtime: 5-10 Working Days
Packaging Details: Individual Package
Core: 100um/200um/300um/400um/600um/800um/1000um
Connector Type: SMA905 Energy Fiber Connector
Core Material: Quartz
NA(Numerical Aperture ): 0.20-0.37
Fiber Type: IR/UV/FSI/DC/PM Fiber
Use: Medical Military Laser
Product Description

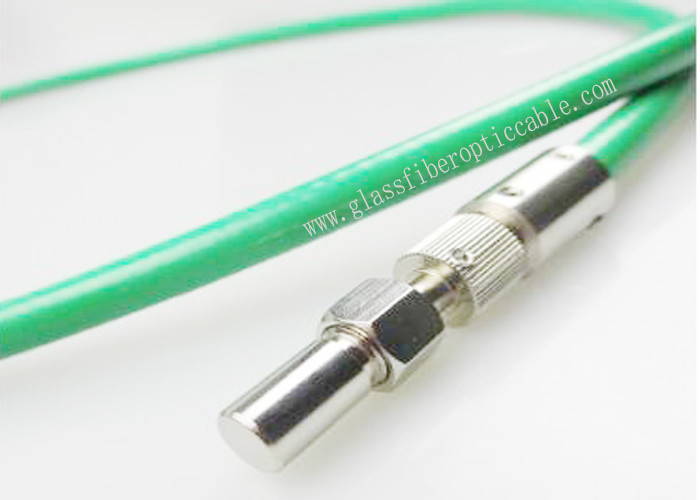

  High Power Fiber-SMA905 Medical Military Laser Fiber Optic Patch Cord



  SMA905 optical fiber connector or terminal with air gap protection modified SMA905 metal connecting head,

  equipped large core diameter energy fiber can meet the general semiconductor laser and low power solider laser

  of output energy laser transmission.

  Connector can be used within the environmental protection technology of non glue technology,

  for further increase energy fiber cooling effect and service life,meet the need of laser welding

  and cutting that high power transmission.





Feature:

1. Good fatigue resistance

2. Connector diversification options, special custom

3. Large core optical fiber, a variety of optional specifications

4. Fiber 105um-1500um optional 190nm-2500nm wavelength range can be selected



Application:

1. Food Safety Testing
2. UV for skin care applications
3. Medical light detection device
4. Industrial control, factory automation
5.Industrial silicon, liquid, spectral detection
6. Optical applications experiments on measurement
7. Automobiles and aircraft as well as military applications



 Parameter

SMA905 Specification
Core Diameter(μm) 105 200 300 400 475 600 1000
Cladding Diameter(μm) 125 220 330 440 500 660 1050
Core Material Pure Quartz
Cladding Material Quartz
Coating Material Acrylate Coating
NA(Numerical Aperture ) 0.20-0.37
Working Band(nm) 200-1100
Fiber Length Customized
Operating Temperature() --40~+85



High Power SMA905 Medical Military Laser Fiber Optic Patch Cord 0



High Power SMA905 Medical Military Laser Fiber Optic Patch Cord 1High Power SMA905 Medical Military Laser Fiber Optic Patch Cord 2High Power SMA905 Medical Military Laser Fiber Optic Patch Cord 3High Power SMA905 Medical Military Laser Fiber Optic Patch Cord 4
