| Fiber Count | Fiber Style | Cable Weight (kg/km) | Tensile Strength (N) | Crush Resistance (N) | Bending Radius (D:cable radius) |
|---|---|---|---|---|---|
| 1 | B1 | 9.2 | ≥100 (short term) ≥60 (long term) |
≥1000 (short term) ≥500 (long term) |
30D (static) 60D (dynamic) |
| B1.3 | 30D (static) 60D (dynamic) |
||||
| B6a | 15D (static) 30D (dynamic) |
||||
| B6b | 10D (static) 25D (dynamic) |
||||
| Same specifications apply for 2-fiber and 4-fiber configurations | |||||
| Parameter | Specification |
|---|---|

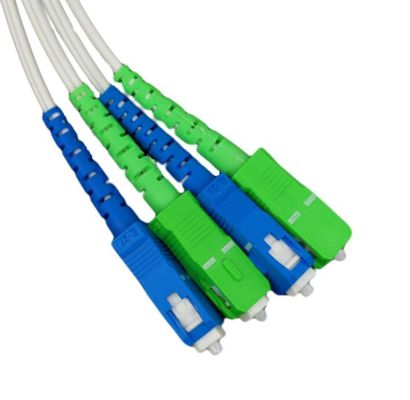

| Connector Types | FC/PC, FC/UPC, FC/APC, SC/PC, SC/UPC, SC/APC, ST/PC, ST/UPC, ST/APC, MU/PC, MU/APC, LC/PC, LC/APC |
| Insertion Loss (dB) | Single mode: Typical 0.1, Maximum 0.3 Multi mode: Typical 0.1, Maximum 0.2 |
| Return Loss (dB) | Single mode: PC≥50, UPC≥55, APC≥60 Multi mode: ≥36 |
| Duplicated (dB) | ≤0.1 |
| Interchangeable (dB) | ≤0.2 |
| Insert/Withdraw Cycles | ≥1000 |
| Operating Temperature (°C) | -25 to +70 / -40 to +80 / -40 to +75 |
