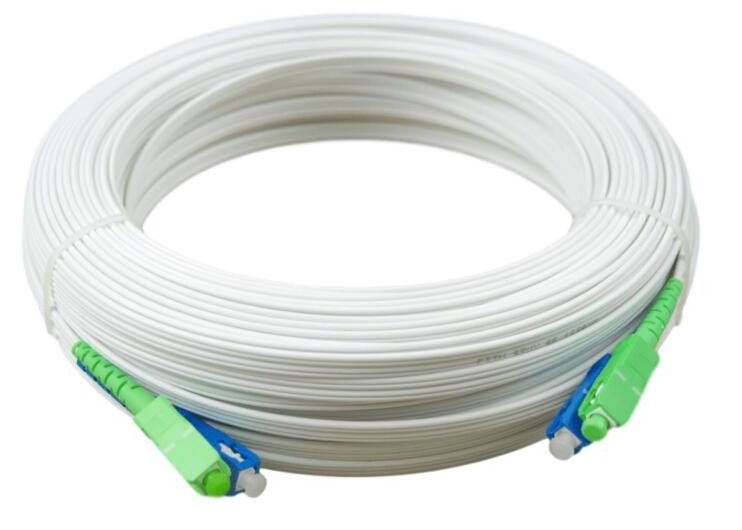

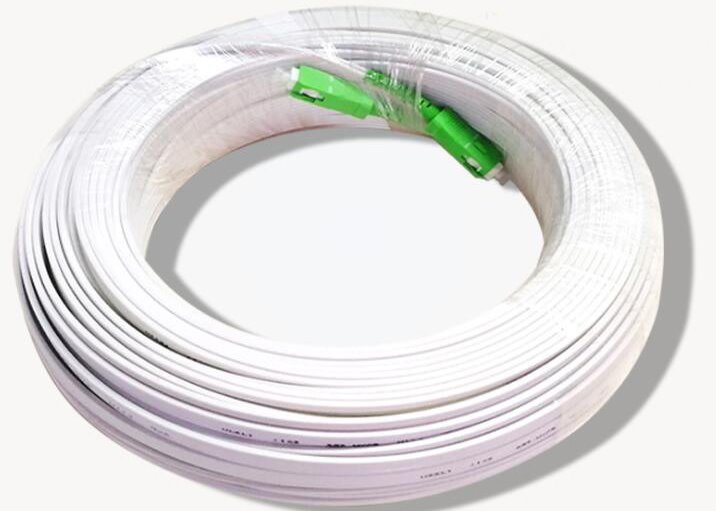

SC UPC APC Connectors For 10m 30m 50m 100M FTTH Fiber Optic Drop Cable
Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be
rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment.
Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.
Description
The optical fiber unit is positioned in the central.
Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

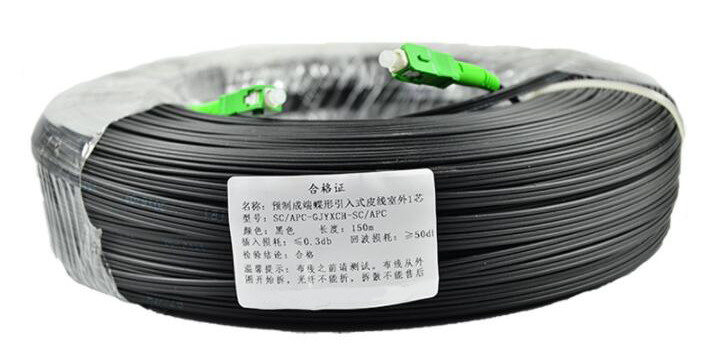

Then, the cable is completed with a black or color LSZH or PVC sheath..
Dharacteristics
---Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
---Simple structure, light weight and high practicability
---Novel flute design, easily strip and splice, simplify the installation and maintenance
--- Special low-bend-sensitivity fiber provides high bandwidth
and excellent communication transmission property
Cable Performance
| Fiber Count | Fiber style | Cable weight (kg/km) | Tensile Strength(N) | Crush Resistance (N) | Bending Radius | |||
| (D:cable radius) | ||||||||
| short term | long term | short term | Long term | static | dynamic | |||
| 1 | B1 | 9.2 | ≥100 | ≥60 | ≥1000 | ≥500 | 30D | 60D |
| B1.3 | 30D | 60D | ||||||
| B6a | 15D | 30D | ||||||
| B6b | 10D | 25D | ||||||
| 2 | B1 | 9.2 | ≥100 | ≥60 | ≥1000 | ≥500 | 30D | 60d |
| B1.3 | 30D | 60D | ||||||
| B6a | 15D | 30D | ||||||
| B6b | 10D | 25D | ||||||
| 4 | B1 | 9.2 | ≥100 | ≥60 | ≥1000 | ≥500 | 30D | 60D |
| B1.3 | 30D | 60D | ||||||
| B6a | 15D | 30D | ||||||
| B6b | 10D | 25D | ||||||
Other performance
1. Strength member: FRP or steel wire
2. Jacket: LSZH or PVC
3. Application: Access network, FTTH cable (Fiber to the home), used in indoor cabling,
Payment
| Payment terms |
| 1) Accepted small order,OEM,etc. |
| 2) Ordinary delivery time: 5-10 days, according to order quantity. |
| 3) Ready to shipping by sea ,DHL , Fedex, EMS, ect. as soon as we receive payment |
| 4) Accept T/T 100% advance. Western Union, PayPal. |
| 5) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility |
Performances Specifications
| Parameter |
Specification | |
|

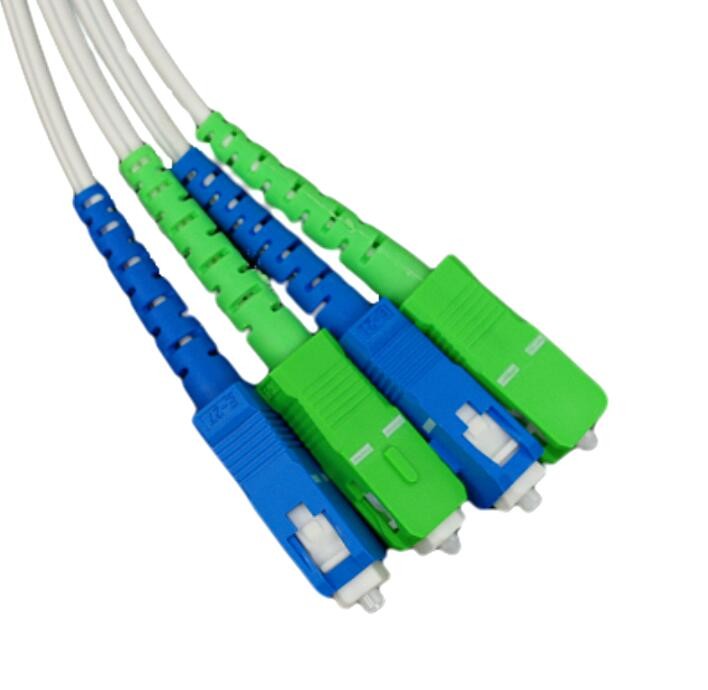

FC/PC,FC/UPC,FC/APC,SC/PC,SC/UPC, SC/APC,ST/PC,ST/UPC,ST/APC,MU/PC,MU/APC |
||
| LC/PC,LC/APC | ||
| Single mode | Multi mode | |
| Insertion loss (typical ) (dB) | Typical Value 0.1 maximum Value 0.3 | Typical Value 0.1 maximum Value 0.2 |
| Return loss (typical ) (dB) | PC≥50,UPC≥55,APC≥60 | ≥36 |
| Duplicated (dB) | ≤0.1 | |
| Interchangeable (dB) | ≤0.2 | |
| Inserts pulls out the number of times (time) | ≥1000 | |
| Operating temperature (°C) | -25~+70 / -40~+80 /-40~+75 | |
|
Optical patch cord Ordering Information
|
||||||
| OFC | Port 1 | Port 2 | Fiber type | Cable outer dimension | ||
| Connector type | End-face type | Connector type | End-face type | (Φ) | ||
| FC,SC | PC,UPC | O:pigtail, FC,SC | O:pigtail, PC,UPC | S=G.625 | 09=0.9mm | |
| ST,LC | APC | ST,LC | APC | H=G.655 | 20=2.0mm | |
| MU | MU | M=Multi mode (50/125um) | 30=3.0mm 33=3.0mm dual core cable | |||
| D=Multimode(62.5/125um) | 22=2.0mm dual core cable | |||||
| 00=customer Spec. | ||||||
