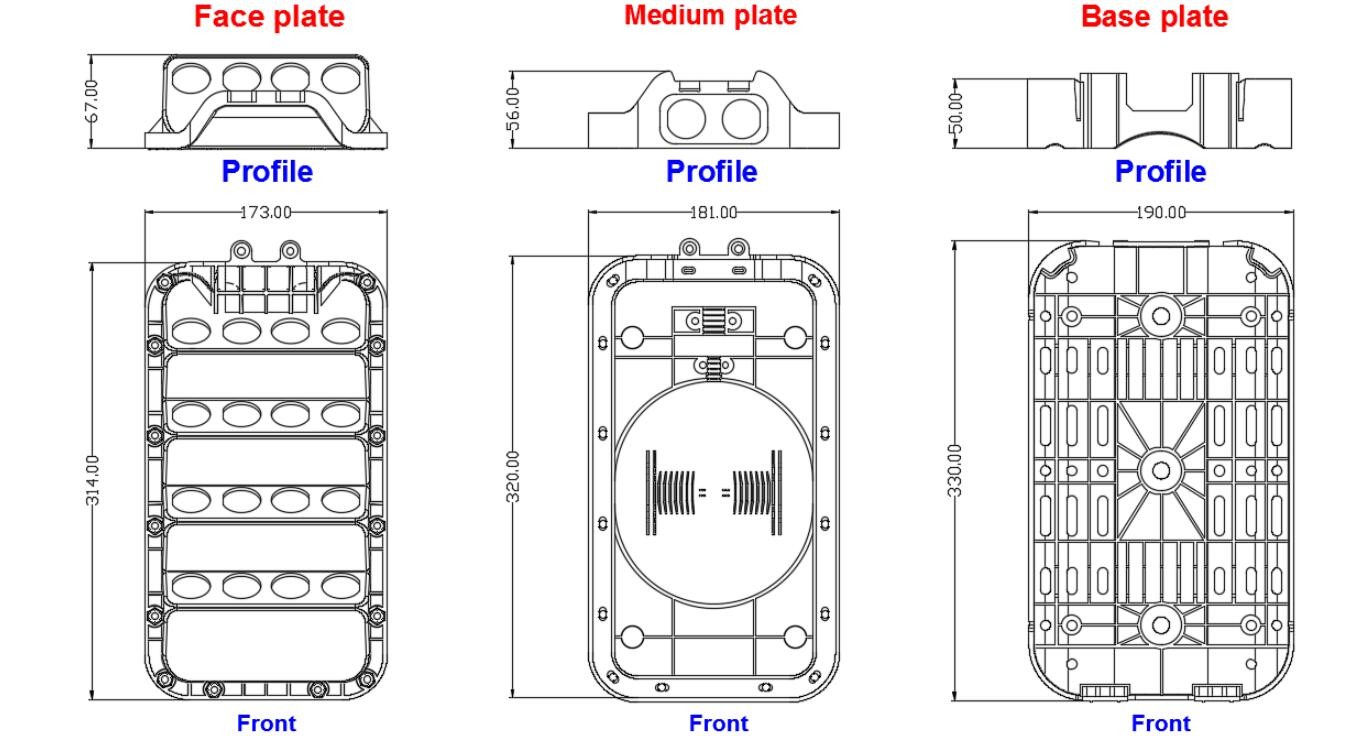

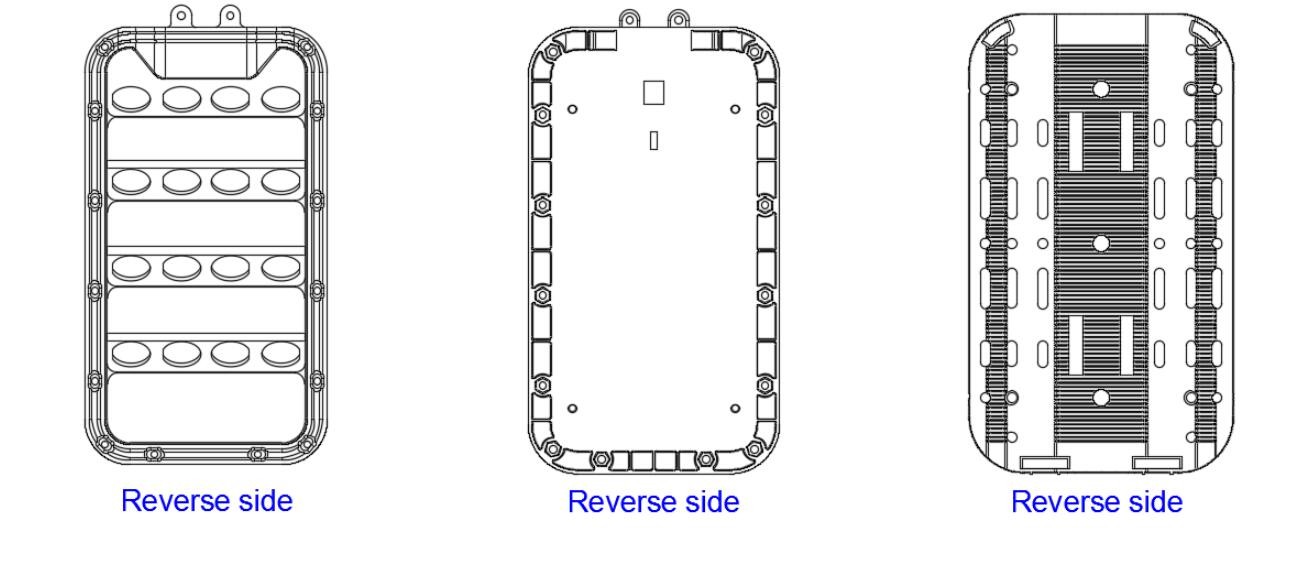

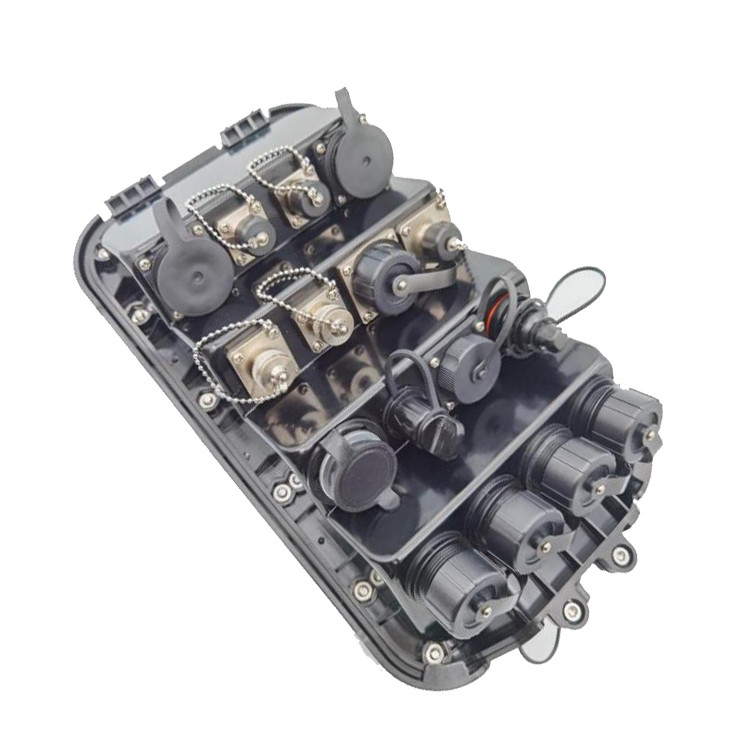

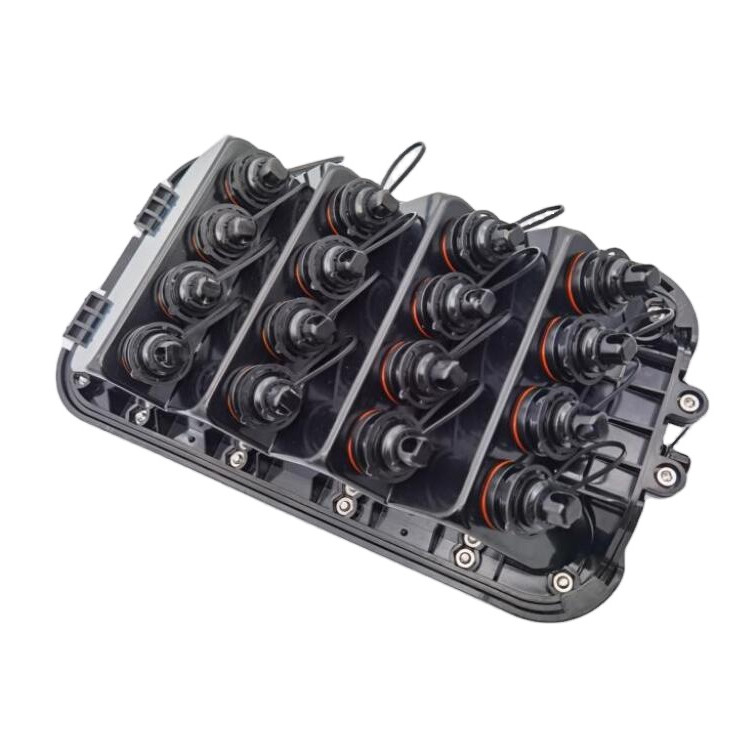

High Compatibility IP67 Pre-assembled Waterproof FTTX Enclosure Available assembled with ODVA (OptiTap)
FTTX Enclosure is a new economic fiber distributed solution for outdoor use. Compare traditional products,
FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting,
aerial installation or holding pole installation, based on different situation.FTTX Enclosure not only
used in FTTH field, but also used in FTTA or other harsh environment.
Trunk Cable Connecting
Trunk cable needs to be fusion welded frequently because of each drum cable length limited.
So connecting point is weak and need to be protected very well.
When trunk cable comes into FTTX Enclosure, it will be sealed and fixed by torsion proof cable
gland (plastic or metal type). For 5mm-14mm out diameter cable,FTTX Enclosure has different accessories to fit.
Torsion gland can release stress when trunk cable bending and protect fiber avoid breaking.
Inside of the FTTX Enclosure, main cable and strength member were fixed by fastener,
which make sure the box can stand 1200N pulling force long term.
Splice protection sleeve (Max. 24pcs) and PLC (Max.2pcs) can be fixed on the body, which make FTTX Enclosure fiber divided
very easy. Anti-skid design on the base case, which makes sure FTTX Enclosure holds wire/pole firmly.
Connectors Product Parameters
|
End A |
Multichannel Hermaphroditic Beam Fiber Optic Connector |
||||
|
End B |
LC,or SC,FC,ST...... |
||||
|
Cable Diameter(mm) |
4.0mm/ 7.0mm/ 8.0mm |
||||
|
Material of jacket |
TPU |
||||
|
Fiber Core |
4,8,12 or specified |
||||
|
Mode |
Singlemode |
Multimode |
|||
|
Operating Wavelength(nm) |
1310/1550 |
850/1310 |
|||
|
Polishment |
UPC |
APC |
UPC |
||
|
Insertion Loss(Max.dB) |
1.5 |
1.0 |
|||
|
Return Loss(Min.dB) |
50 |
35 |
|||
|
Mechanical Features |
Plug |
≤1000N(main cable) |
|||
|
Socket |
≤100N(Branch cables) |
||||
|
Grade |
IP68 |
||||
|
Mating time |
500 Min |
||||
|
Durability(Max.dB) |
0.2 |
||||
|
Reaptability(Max.dB) |
0.5 |
||||
|
Operating Temperature(℃) |
-40~+85 |
||||
|
Storage Temperature(℃) |
-40~+85 |
||||
Application :
Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.
Automation and industrial cabling
ODVA provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.
Surveillance systems
Security camera manufacturers chooseODVA connectors for its compact size and robust design. ODVA assemblies are easy to install even in areas difficult to access and provide highest installation safety.
Naval and ship building
The high corrosion resistance convinced both naval and civil ship builders to use ODVA assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.
Broadcast
offers a range of mobile cabling systems and ODVA assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.
