Trunk Cable FTTX Enclosure IP67 Pre-Assembled Waterproof With ODVA OptiTap
10sets
MOQ
negotiation
Price
Trunk Cable FTTX Enclosure IP67 Pre-Assembled Waterproof With ODVA OptiTap
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: FTTX Enclosure
High Light:

IP67 Pre Assembled FTTX Enclosure

,

Trunk Cable FTTX Enclosure

,

FTTX Enclosure With ODVA OptiTap

Payment & Shipping Terms
Packaging Details: Max 100m/ per reel for 5.0 mm OD cable
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500pcs Per Week
Specifications
Cable Type: Trunk Cable FTTX Enclosure
Connectors: Customized Or LC Connectors
Paintcoat Color: Black
Cable Purpose: Aerospace, Airborne, Marine, Ground Vehicle,tactical And Even Automotive Commercial Applications
Length: Per Reel.100m -500m
Application: Outdoor Telecom Station Communication
High Compatibility: ODVA, Hconn (OptiTap Compatible), Mini SC, ODC, PTLC, PTMPO Or Power Adapter.
Product Description

Trunk Cable FTTX Enclosure IP67 Pre-Assembled Waterproof Function With ODVA OptiTap





FTTX Enclosure is a new economic fiber distributed solution for outdoor use. Compare traditional products,

FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting,

aerial installation or holding pole installation, based on different situation.FTTX Enclosure not only

used in FTTH field, but also used in FTTA or other harsh environment.





Trunk Cable Connecting


Trunk cable needs to be fusion welded frequently because of each drum cable length limited.

So connecting point is weak and need to be protected very well.

When trunk cable comes into FTTX Enclosure, it will be sealed and fixed by torsion proof cable

gland (plastic or metal type). For 5mm-14mm out diameter cable,FTTX Enclosure has different accessories to fit.





Torsion gland can release stress when trunk cable bending and protect fiber avoid breaking.

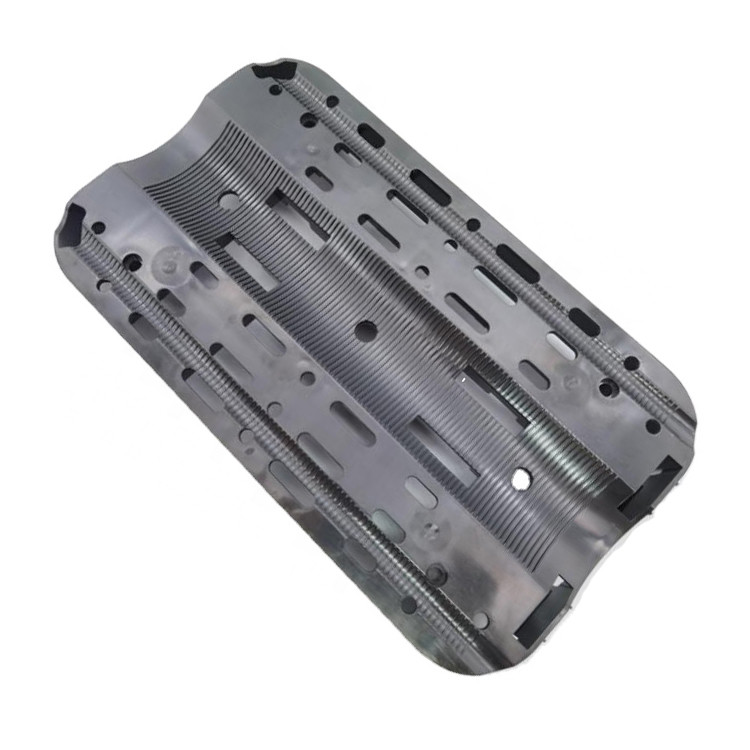

Inside of the FTTX Enclosure, main cable and strength member were fixed by fastener,

which make sure the box can stand 1200N pulling force long term.



Splice protection sleeve (Max. 24pcs) and PLC (Max.2pcs) can be fixed on the body, which make FTTX Enclosure fiber divided

very easy. Anti-skid design on the base case, which makes sure FTTX Enclosure holds wire/pole firmly.



Connectors Product Parameters



End A

Multichannel Hermaphroditic Beam Fiber Optic Connector

End B

LC,or SC,FC,ST......

Cable Diameter(mm)

4.0mm/ 7.0mm/ 8.0mm

Material of jacket

TPU

Fiber Core

4,8,12 or specified

Mode

Singlemode

Multimode

Operating Wavelength(nm)

1310/1550

850/1310

Polishment

UPC

APC

UPC

Insertion Loss(Max.dB)

1.5

1.0

Return Loss(Min.dB)

50

35

Mechanical Features

Plug

≤1000N(main cable)

Socket

≤100N(Branch cables)

Grade

IP68

Mating time

500 Min

Durability(Max.dB)

0.2

Reaptability(Max.dB)

0.5

Operating Temperature(℃)

-40~+85

Storage Temperature(℃)

-40~+85



















































Application :


Fiber-to-the-Antenna (FTTA)


Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.

Automation and industrial cabling

ODVA provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.

Surveillance systems

Security camera manufacturers chooseODVA connectors for its compact size and robust design. ODVA assemblies are easy to install even in areas difficult to access and provide highest installation safety.

Naval and ship building

The high corrosion resistance convinced both naval and civil ship builders to use ODVA assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.

Broadcast

offers a range of mobile cabling systems and ODVA assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.
