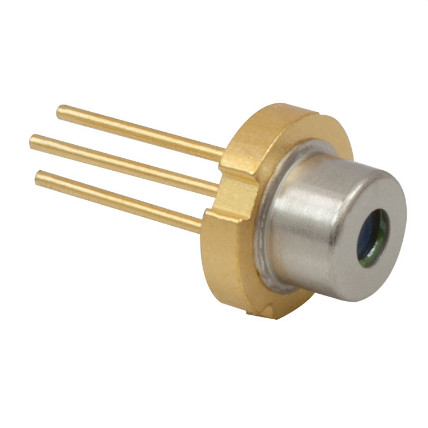

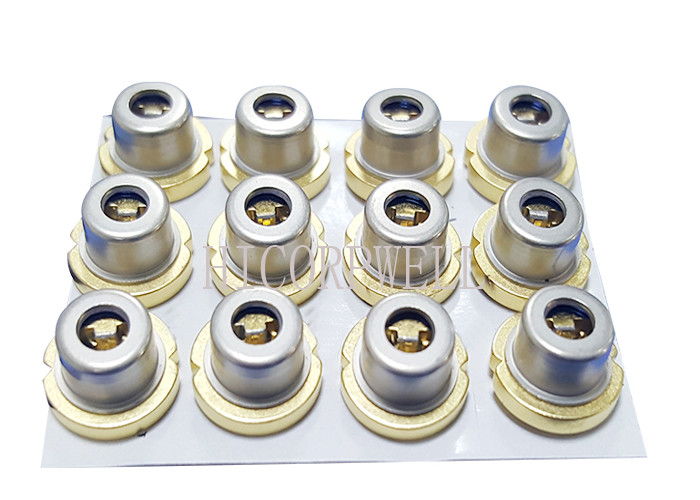

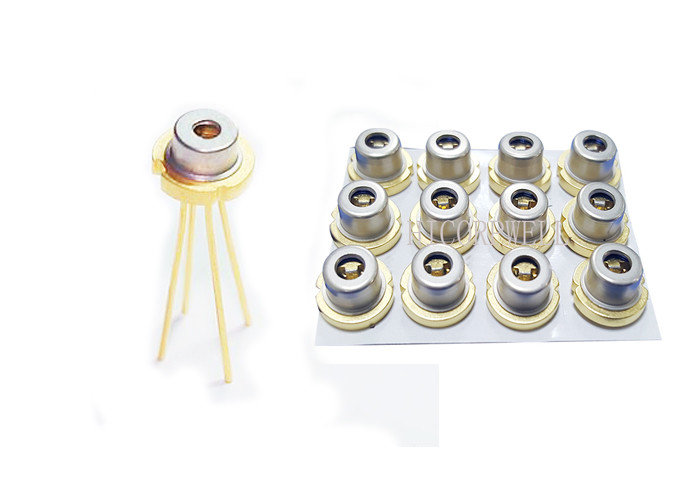

DFB 1625nm 2.5G Coaxial Fiber Optic Pigtail Laser Diode Low Insertion Loss

1 set
MOQ
negotiation
Price
DFB 1625nm 2.5G Coaxial Fiber Optic Pigtail Laser Diode Low Insertion Loss
Features Gallery Product Description Request A Quote
Features
Specifications
Type: DFB 1625nm 2.5G Laser Diode
Wavelength: 1625NM
Isolation: 30dB
Laser: DFB
Payment: TT/PayPal
Max. Reverse Voltage: 15(PD)
Package Type: Through Hole
Fiber: SM 9/125
Power: 4mW
Package: Coaxial Pigtail
Highlight:

fiber optical pigtail

,

fiber pigtails patch cords

,

Fiber Optic Pigtail Laser Diode

Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: ISO9001;2015
Model Number: DFB 1625nm 2.5G Laser Diode Laser Modules
Payment & Shipping Terms
Packaging Details: DFB 1625nm 2.5G Coaxial pigtail package
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500pcs Per Week
Product Description

DFB 1625nm 2.5G Coaxial Pigtail Laser Diode Low Insertion Loss Fiber Optic Pigtail






Features


1. Integrated high isolation and low insertion loss
2. Built - in optical isolator
3. Integrated high isolation , low insertion loss
4. Low threshold current , low operating current


Applications

OTDR Transmission
Analog or Digital Optical Transmission


Absolute maximum ratings



Parameter Symbol Min. Max. Unit Test Condition
Storage Temperature Tstg -40 100 -
Operating Temperature Top -40 85 -
Reverse Voltage Vr - 2 V CW
Soldering Temp - - 260 -
Soldering Time - - 10 S S



Optical & Electrical Characteristics

Parameter Symbol Min. Typ. Max. Unit Test Condition
Rated Power Po 1 2 - mW Ith+20mA
Threshold Current Ith 10 -  20 mA CW
Forward Voltage Drop Vop -  1.0 1.5 V CW, Ith+20mA
Cent Wavelength λc 1620 1625 1630 nm -
Spectrum Width(-3dB) Δλ -  0.5 1 nm Ith+20mA
Side-mode Suppression Ratio SMSR 30 40 -  dB -
Bandwidth Bw - 2.5  - GHz RI=50Ω
Monitor Current Im 0.1 0.5  1 mA CW, Ith+20mA
Dark Current of Monitor Id -  -  100 nA CW, Ith+20mA
Optical Isolation ISO 30 - - dB 25℃




Order Information

MLD-D62X2-XAXP1

M LD -D 62 X 2 -X A X 1
Mode Product Type Chip Wavelength Insolator Bandwidth Connector Pin Pigtail Length Power Range
    D:DFB 62:1625 S:Single
W:Without
2:2.5Gb/s 1:FC/APC
2:FC/PC
3:SC/APC
4:SC/PC
5:LC/PC
6:LC/APC
W:Without
A:725 05:0.5m
10:1.0m
P1:>1mW





DFB 1625nm 2.5G Coaxial Fiber Optic Pigtail Laser Diode Low Insertion Loss 0
