SM G652D Bare Optical Fiber G657 250um A1 MM 50 / 125 OM3 OM4 62.5 / 125
10KM
MOQ
negotiation
Price
SM G652D Bare Optical Fiber G657 250um A1 MM 50 / 125 OM3 OM4 62.5 / 125
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Bare Optical Fiber Spool OTDR Cable
High Light:

fiber optic cable spool

,

fiber optic wire

Payment & Shipping Terms
Packaging Details: Standard length: 2km/roll (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Fiber Type: G652/G657 250um Bare Fiber
Paintcoat Color: Aqua,yellow ,blue Or Others
Cable Purpose: ODTR Or FO Cable
1310nm: 0.36-0.22 DB/Km
1550nm: 0.5-0.4 DB/Km
Fiber: G652D,G657A
Certificate: IEC 60794-2-10/11
Connectors: Can Be Added As Per Your Request, SC/LC/FC/ST Etc
Product Description

SM G652D G657A1 MM 50/125 OM3 OM4 62.5/125 Bare Optical Fiber

Bare glass fibers are based on silica or other glass materials. The glass surface is susceptible to abrasion and mechanical flaws. To protect the cable from the environment, the buffer coating or jacket fits over the core and cladding.



The diameter ranges from 250μm to 900μm, usually 250um for single mode and multimode fibers, but 400um is also very common in polarization maintaining fibers. It provides mechanical protection while allowing for flexibility in the fiber.



The buffer coating is usually made of a soft or hard plastic such as acrylic or nylon. Kevlar is a popular choice for the jacket material. It is strong and used to bundle and protect the loose tubes or fibers in the cable.



Kevlar protects the fibers when the tension is placed on the cable. The color of this jacket typically depends on the type of fiber, single mode fibers typically wear a yellow jacket and multi-mode fibers wear an orange jacket.

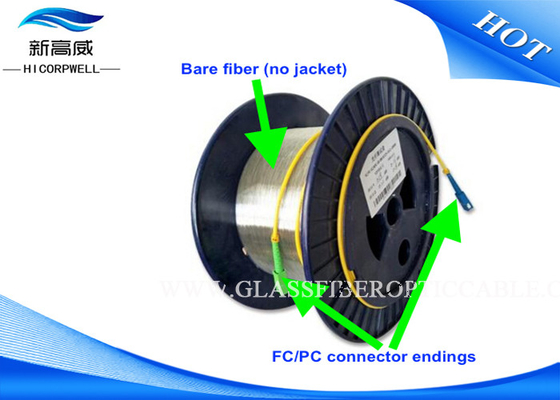

OTDR Dummy fiber is designed to be used in conjunction with an OTDR to measure complete link loss of a fiber. They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings.

An OTDR dummy fiber, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.


A fiber ring serves as both a launch cable and a receive cable.



  •  G652/G657 250um bare fiber
  •  Connectors can be added as per your request, SC/LC/FC/ST etc
  •  Standard length: 2km/roll (as per your requirements)



Part No. Description
Fiber-ROLL-SM10

SM G652D, 1KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

Fiber-ROLL-SM20

SM G652D, 2KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,

LC/UPC, LC/APC optional

Fiber-ROLL-MM10

MM (62.5/125um or 50/125um), 1KM,

Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-ROLL-MM20

MM (62.5/125um or 50/125um), 2KM,

Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-ROLL-SM710

SM G657A, 1KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

Fiber-ROLL-SM720

SM G657A, 2KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,

LC/UPC, LC/APC optional

Fiber-ROLL-OM310

OM3, 1KM,

Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-ROLL-OM320

OM3, 2KM,

Connector; FC/PC, SC/PC, ST/PC, LC/PC optional





SM G652D Bare Optical Fiber G657 250um A1 MM 50 / 125 OM3 OM4 62.5 / 125 0SM G652D Bare Optical Fiber G657 250um A1 MM 50 / 125 OM3 OM4 62.5 / 125 1
