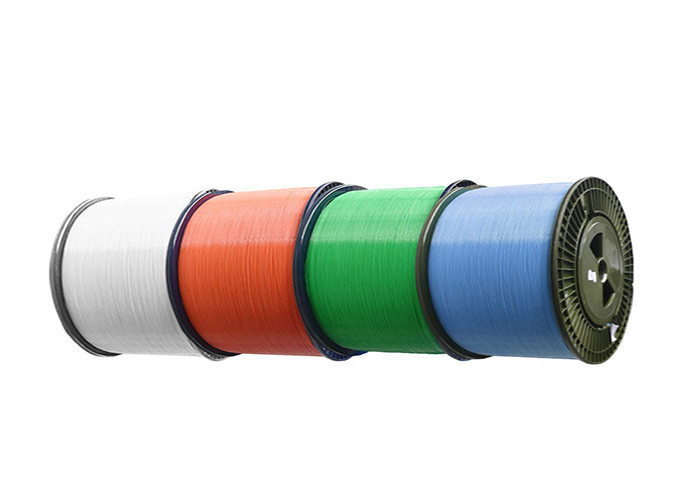

IEC 60794 Fiber Optic Cable Spool , SMF G652D 2km / Roll Duplex Fiber Cable
SMF G652D fiber
is designed to be used in conjunction with an OTDR to measure complete link loss of a fiber.
They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings. An OTDR dummy fiber, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.
| Part No. | Description |
| Fiber-ROLL-SM10 |
SM G652D, 1KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| Fiber-ROLL-SM20 |
SM G652D, 2KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| Fiber-ROLL-MM10 |
MM (62.5/125um or 50/125um), 1KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional |
| Fiber-ROLL-MM20 |
MM (62.5/125um or 50/125um), 2KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional |
| Fiber-ROLL-SM710 |
SM G657A, 1KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| Fiber-ROLL-SM720 |
SM G657A, 2KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| Fiber-ROLL-OM310 |
OM3, 1KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional |
| Fiber-ROLL-OM320 |
OM3, 2KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional |
A fiber ring serves as both a launch cable and a receive cable.
