1550nm 1610nm TEC BOSA Module Integrated DFB LD And Analog InGaAs PIN PD
1 set
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: ISO9001;2015
Model Number: 1610nm TEC BOSA module
High Light:

1610nm TEC BOSA Module

,

1550nm TEC BOSA Module

,

2mw tec module

Payment & Shipping Terms
Packaging Details: DFB Coaxial Package
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500pcs Per Week
Specifications
Type: 1610nm TEC BOSA Module
Wavelength: Tx1610nm Rx 1550
Application: Ethernet
Power Supply: 2mW
Package Type: 30X30X10 Cm
Responsivity: 0.85
Product Description

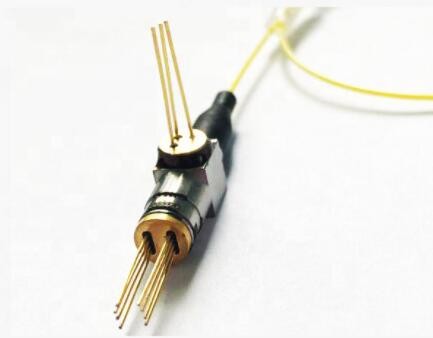

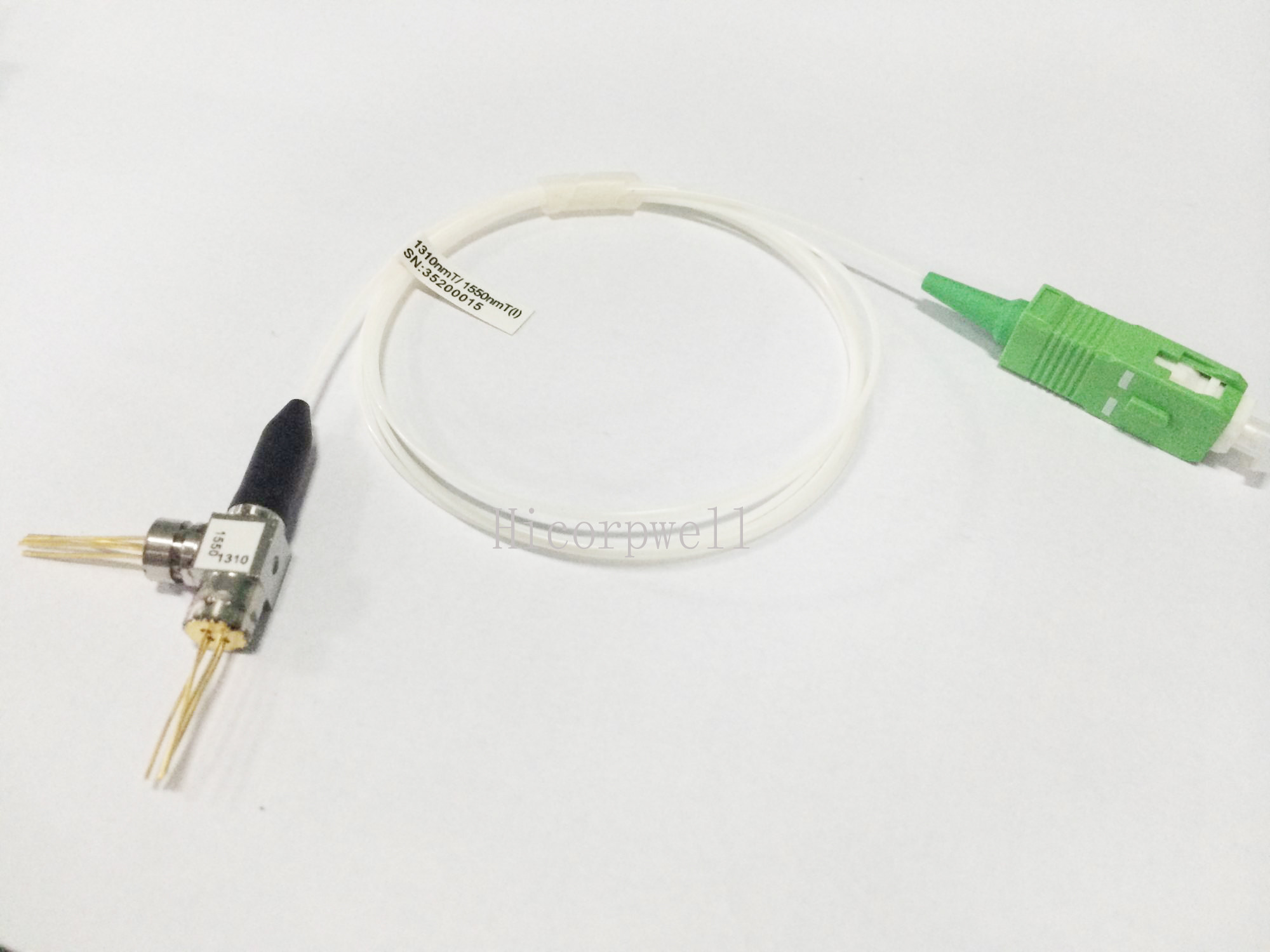

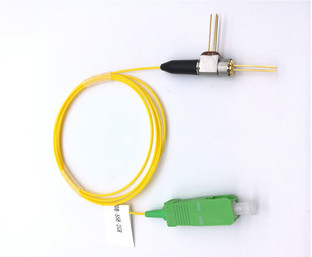

1610nm TEC BOSA module integrated DFB LD and analog InGaAs PIN PD 1550nm for CATV RFoG



Hicorpwell   single fiber optical subassembly is designed for CATV applicatons.



It integrates MQW CWDM DFB LD and InGaAs PIN detector for analog 1550nm signal.



It built-in InGaAs monitor PD and TEC chipset.



Operating temperature -40 to 85 °C



Optical & Electrical Characteristics Transmitter



Parameter Symbol Min Typ Max Unit Condition
Rated Output Power Pout 2.0 - 3.0 mW If=30mA
Tx wavelength nm 1607   1613 nm
Threshold Current Ith - 10 15 mA CW
Slope Efficiency Es 0.1 - - W/A
Tracking Error TE -1.5 - 1.5 dB
Optical isolation Iso 30 - - dB
TEC Qmax - - 0.6 W

Receiver
Parameter Symbol Min Typ Max Unit Condition
Wavelength Range λ 1540 1550 1560 nm CW
Overload P 3 - - dBm
Bandwidth BW 1.5   - GHz -
Responsivity R 0.80 0.85 - A/W λ =1550nm
Active Diameter Ad   75   um -

1550nm 1610nm TEC BOSA Module Integrated DFB LD And Analog InGaAs PIN PD 0
