HCW110 Economical Digital Analog Signal Cable TV Field Strength Meter
1 pcs
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Certification: IEC 60794-2-10/11
Model Number: Fiber optical power meter
High Light:

Digital TV Field Strength Meter


Analog Signal Cable Field Strength Meter


Analog Tv Field Strength Meter

Payment & Shipping Terms
Packaging Details: Size : 2100mm*70mm*48mm
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000pcs Per Week
Type: Economical Digital Analog Signal Cable Tv Field Strength Meter
Size: 2100mm*70mm*48mm
Frequency Range: 46MHz~870MHz
Weight: ≤650g
Measuring Bandwidth: 280KHz±50KHz
Measured Input Voltage Range: 1-100V AC
Battery: 7.4V 1100mAH Lithium Battery
Digital Average Power Measurement Range: 30~120dBuV
Product Description

HCW110 Economical Digital Analog Signal Cable TV Field Strength Meter


HCW110/HCW110D Field strength meter is a construction and maintenance for analog TV/digital television, measuring instrument for TV signal level and power, are widely used in CATV system routine maintenance.Using high brightness backlight work mode, clear liquid crystal display (LCD), double channel measurement display, convenient and practical.Setting up the digital keyboard input, the application is simple;is a small volume, light weight, portable signal level measuring instruments, convenient to carry, convenient test under different working circumstance.



1.Single channel frequency measurement
2.Dual channel, the slope measurement
3.A/V ratio, C/N measurement
4.Mains voltage measurement
5.Digital average power measurement


Technique Data:

Model HCW110 HCW110D
Frequency Range 46MHz~870MHz 5MHz~870MHz
Channels Range China standard channel:1~56,Chinese supplementary channel:Z1~Z43
Frequency accuracy ±50*10E-6(20℃±5℃)
Resolution 50KHz
Measuring Bandwidth 280KHz±50KHz
Level measurement range 30~120dBuV
Level measurement accuracy ±1.5dB (25℃±5℃)
Digital average power measurement range 30~120dBuV
Digital average power measurement accuracy ±1.5dB (25℃±5℃)
Resolution 0.5dBuV
Detection methods Peak detection
Input Impedance 75Ω
Measured input voltage range 1~100VAC
Voltage measurement accuracy ±2V
Resolution 1V
Carrier to noise ratio measurement range 20~50dBuV
Dimensions 2100mm*70mm*48mm
Weight 650g
Audio output Built-in speakers (single frequency patterns manually open)
Battery 7.4V 1100mAH lithium battery
Charging time/work time >4hours/>8hours(Audio/LCD backlight off)

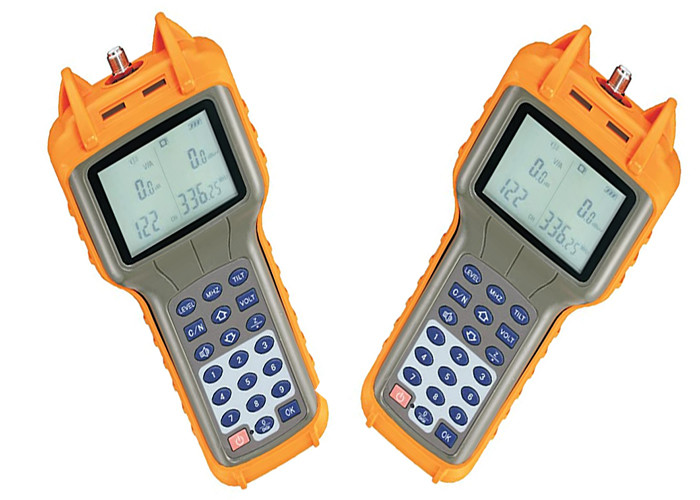

Product picture:


HCW110 Economical Digital Analog Signal Cable TV Field Strength Meter 0
