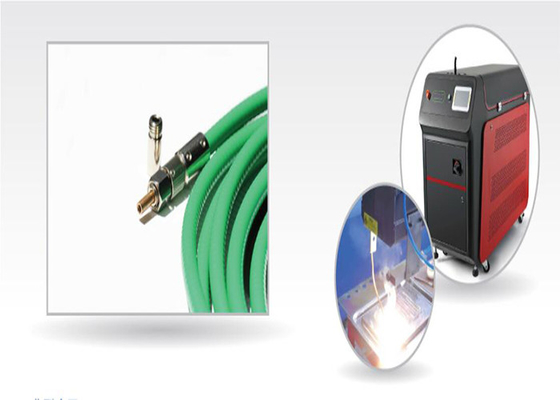

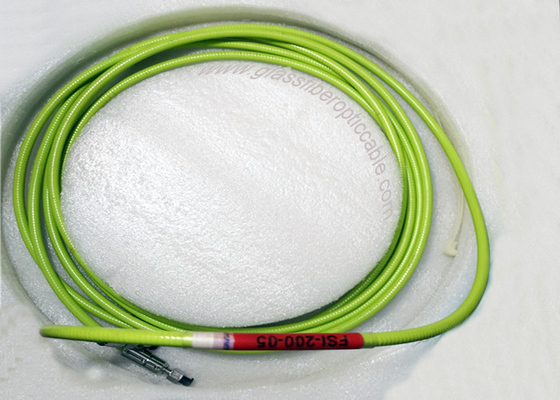

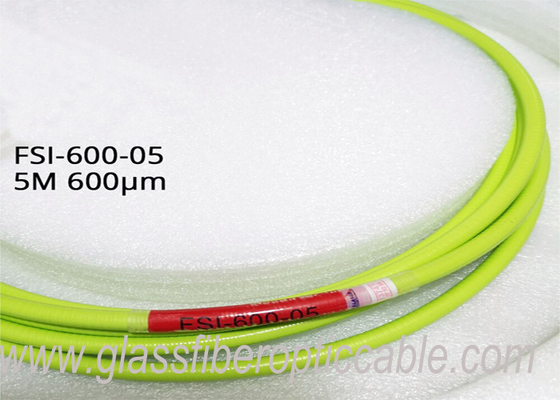

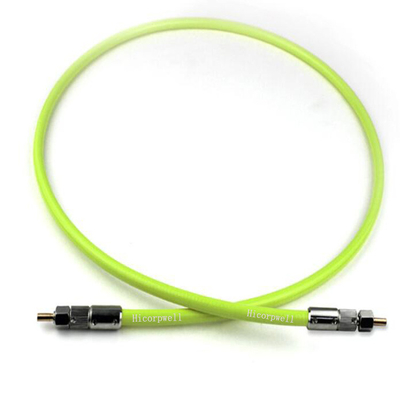

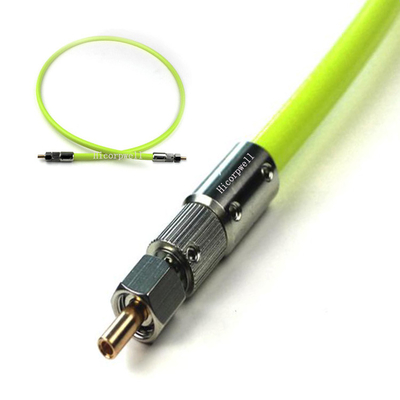

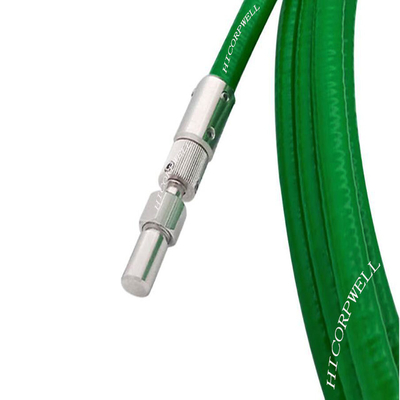

Energy Fiber Laser 5meters FSI-600-05 FSI-400-05 Fiber Cables High Power Laser Cable Wavelength 600um
Features:
Sapphire protected connector;
Protective layer of high quality stainless steel armored hose;
Large core power fiber;
Advanced non adhesive process;
A variety of specifications optional.
Application:
High power laser flexible transmission;
Laser welding and cutting;
Laser marking;
Atmospheric spectrum measurement;
Laser cleaning.
Fiber parameters
| parameter | Specification | |||
| Product model(µm) | HCW200E | HCW300E | HCW400E | HCW600F |
| Core diameter(µm) | 200 | 300 | 400 | 600 |
| Cladding diameter(µm) | 500 | 500 | 500 | 750 |
| Coating diameter | 780 | 780 | 780 | 1100 |
| Core material | Pure quarta(Low-OH) | |||
| Cladding material | Doped quartz material | |||
| Numerical aperture(NA) | 0.22 | |||
| Two cladding numericail(NA) | NA 0.37 OR NA 0.46 | |||
| Operating wavelength(nm) | 400-2400 | |||
| Length(m) | 3, 5, 10(the default length is 5 meters, which can be customized) | |||
