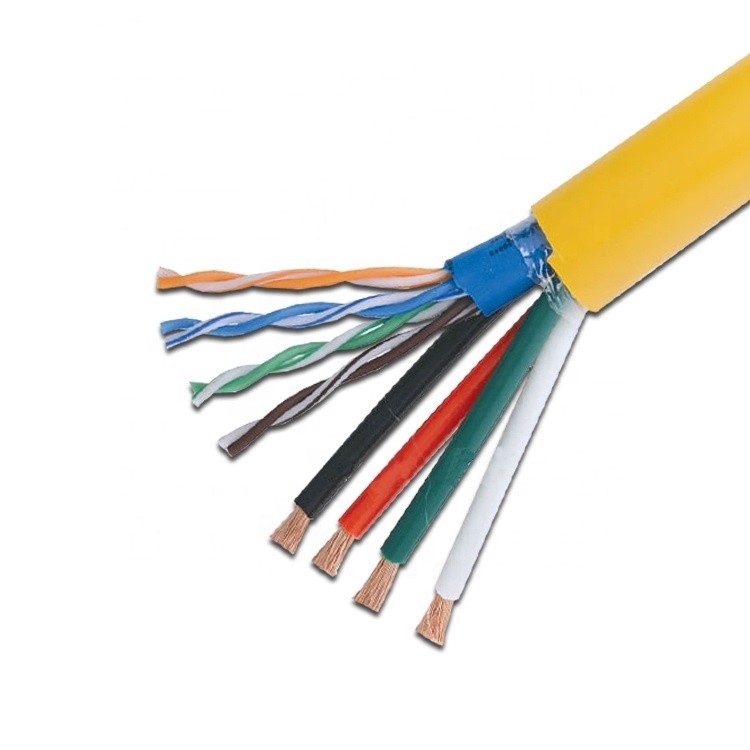

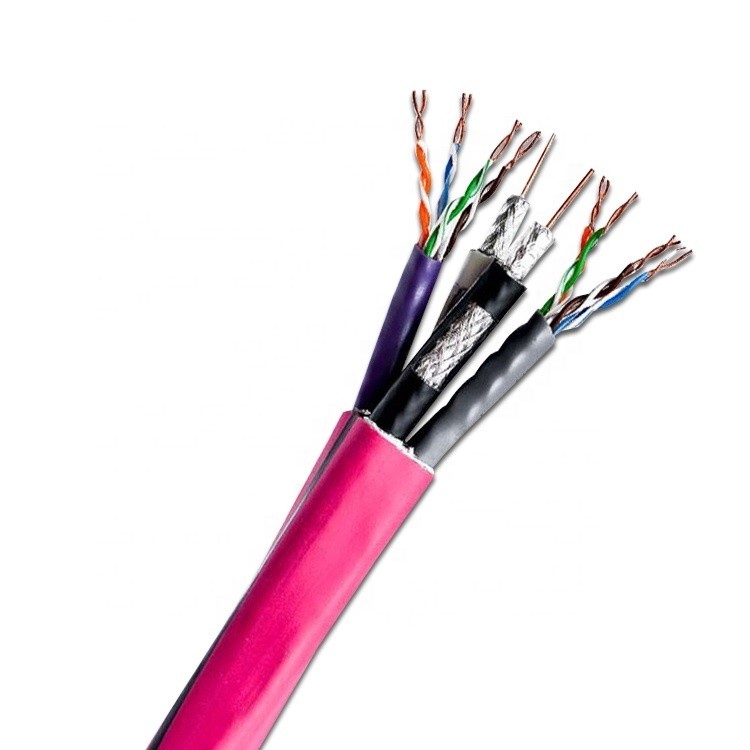

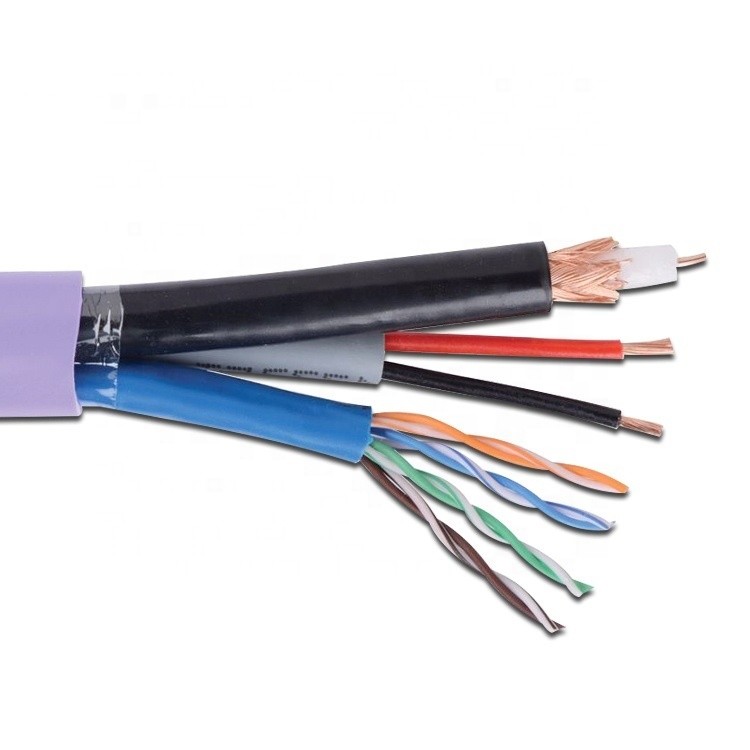

Composite communication cable Coaxial rg6+cat6+cat5e+power cable+fiber optic cable

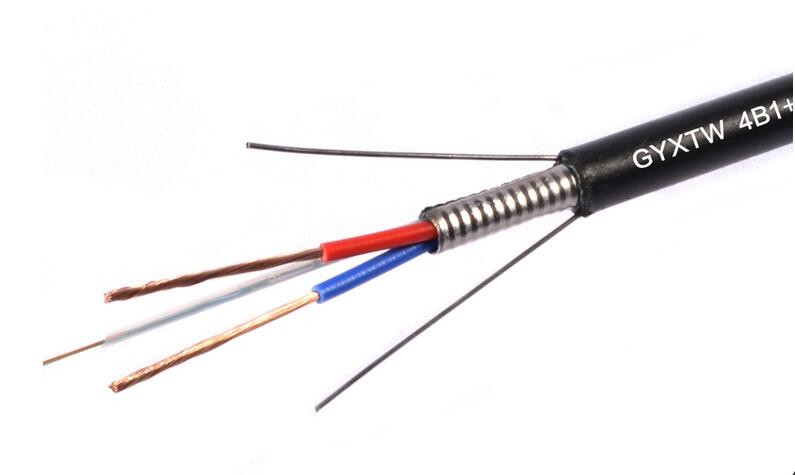

In the hybrid fiber optic cable, single-mode/multimode fibers are positioned in loose tubes, which are made of high modulus plastics and filled with water-blocking materials.Loose tubes and required insulated copper wires are stranded around the metallic central strength member into a compact and circular cable core.
RG6/U Triple Shield
1. Center Conductor:---------1.02+0.01mm 21% CCS
2. Dielectric:-------------------- 4.57+0.1mm Foam PE
3. First shield:------------------ 17mm Dual-Bonded AL foils
Average core dia.: --------- 4.78+0.13mm
4. Second shield:-------------- 16X6X0.16mm AL Braiding ,77%
5. Third shield:----------------- 20mm Dual-Bonded AL Foil
6. Outer Jacket: --------------- 7.0+0.1mm PVC.
UTP CAT6 23AWG
1. Center Conductor:---------0.57+0.005mm Solid Bare Copper
2. Dielectric:-------------------- 1.04+0.01mm HDPE / 4 Pair
3. Colrr Code ----------------- White/Blue, White/Orange, White/Green, White/Brown
4. Rip cord
5. Center Cross
6. Jacket:------------------------- 6.30±0.05 PVC
Jacket Thickness:----------- 0.55mm
UTP CAT5e 24AWG
1. Center Conductor:---------0.500±0.005mm Solid Bare Copper
2. Dielectric:--------------------0.88±0.03mm HDPE / 4 Pair
Color: ----------------- White/Blue, White/Orange, White/Green, White/Brown
3. Ripcord
4. Jacket:------------------------- 5.3mmPVC
5. Jacket Thickness:----------- 0.5±0.05
Power Cable
1. Center Conductor:--------- 0.38*9(1.0mm2) Stranded Bare Copper
3. Jacket:------------------------2.3mm PVC
4. Jacket Thickness:----------- 0.5mm
5. Power cable DC resistance: Ohm/100FT
GJPFJV-4B1
Fiber type:---------9/125 (G652D)
Tight buffer diameter------0.85+0.5mm
Strength member--------Aramid yarns
Jacket material------ PVC
Sheath color----Yellow
Jacket diameter---4.5+0.2mm
Overall Outer Jacket: Flame Retardant PVC
Specification On RG6 Cable.pdf
Application:
1. Suitable the filed where needs to transmit light signal and electric signal.
2. Mobile operators deploying an RRU architecture to standardize the RRU
Characteristic of fiber optic/copper hybrid fiber cable
1. The composite cable provides the equipment electricity and signal transmission, and Improves central monitoring and maintenance for equipment power.
2. To reduce the coordination and maintenance of power supply.
3. Combines optical fiber (multimode or single mode ) and copper conductor for DC power in a single light
weight aluminum corrugated cable.
